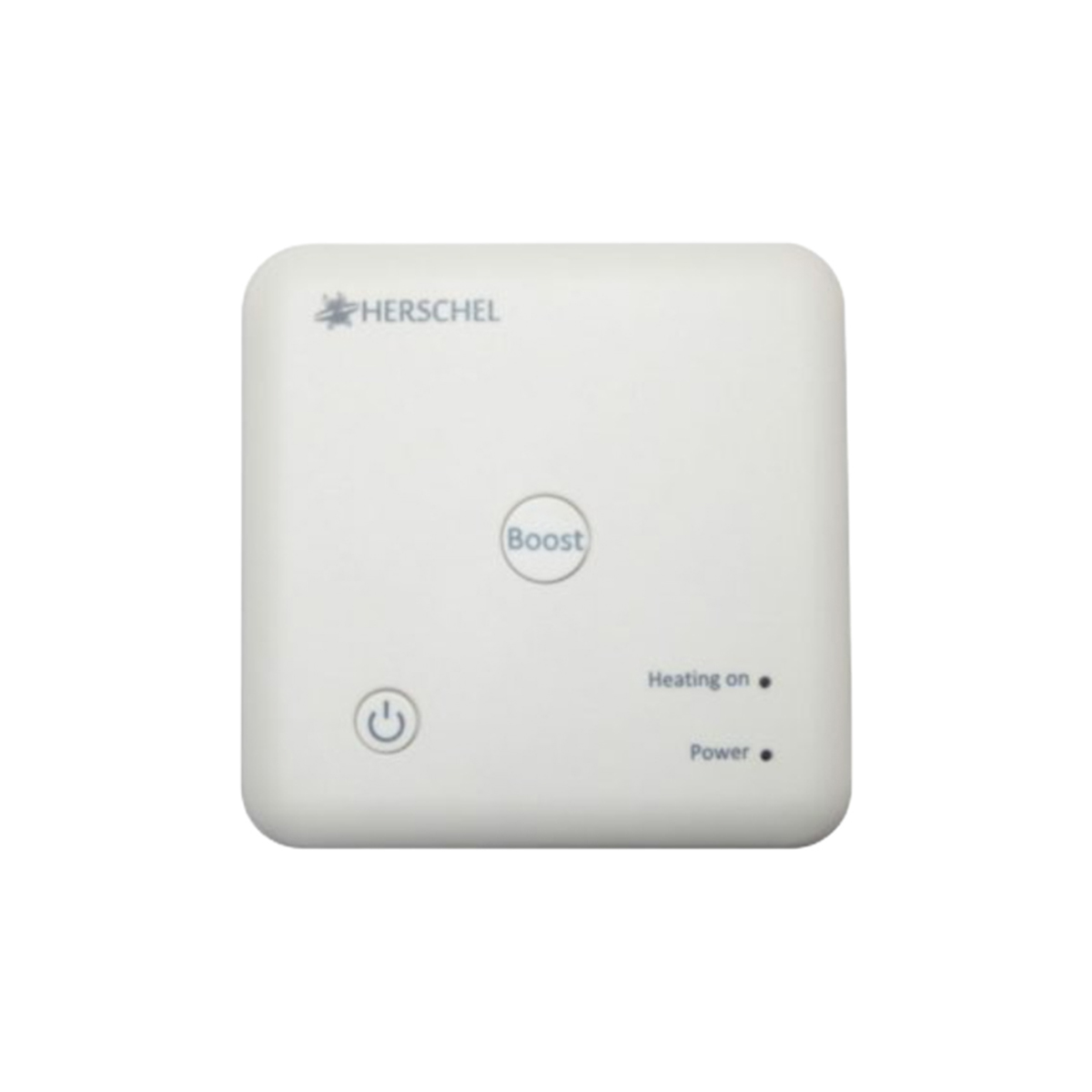

Herschel iQ R3 Thermostat
R2 Wireless receiver

Herschel iQ R3 Thermostat


Key Features:

  • Combined thermostat/ receiver;
  • Control via Smart Life App;
  • 1 hour boost function;
  • Use with Comfort and Inspire ranges;
  • 2.4GHz WiFi.

Order before 12pm for next day delivery

Next Day Delivery

2 year warranty

Reduce heating Cost

Energy efficient

Easy Installation

Zero Maintenance

Find Out More

  • Description


    The Herschel iQ R3 Thermostat is a stand-alone thermostat control unit that works together with the Smart Life App to control your Herschel Infrared heaters. The R3 controller is both a thermostat and receiver combined. The R3 thermostat is wired to both the heaters and mains-power, there is no need for a separate unit within the room.

    The R3 senses the temperature in the room, sends data via WiFi to the App, which returns control commands to the heater to switch it on and off according to your heating settings in the App.  The R3 will not function properly without WiFi or the App. The R3 Receiver features a convenient 1 hour Boost function – press the Boost button and top up your heating for one hour, regardless of existing App settings. All other control functions are provided from the Smart Life App.

    The R3 is ideal where you are looking to control your heaters via App. Simply download the Smart Life App to a phone or tablet and control your Herschel Comfort and Herschel Inspire infrared panel heaters via App, from anywhere in the world with WiFi connectivity, at the top of a button. Herschel Smart Switches can also be added for centralised control of all thermostats, working in conjunction with the Smart Life App. Use the Touch Screen Control Centre for handy, quick and customised control from a central hub. Alternatively, the Four Scene Control will run 4 control functions with just one click.

    Herschel iQ R3 thermostat incorporates the latest energy-saving features including Herschel’s open window technology, ensuring your room is always at the right temperature with the least energy use. The Smart Life also allows you to control the system by voice using Alexa or Google Assistant.

    The R3 is a 10 amp mains-wired unit and will safely control up to 1.8kW of heating load per unit.  It can also be used to trigger a contactor to manager greater heating loads if required.


    Herschel controls will only work with Herschel heaters.  Attempted use with any other heater brand will invalidate the warranty.

    The R3 is not interchangeable with the R2 or vice versa.

  • Technical

    Technical Specifications

    Surface: ARC+PC UL94 fire retardant plastic

    Voltage: 120 - 240VAC 50/60Hz

    Power Supply: Mains. 10A Peak Load.

    Protection Class: IP20

    Installation: Wall or ceiling-mounted

    Setpoint Range: 5-35°C

    Wifi Band: 2.4GHz

    Programming: Only via Smart Life App

    Quality & Safety


    EU/ UK Electrical Safety: EN60730-1&2-9

    AUS/ NZ Electrical Safety: RCM Compliant. Low risk appliance.

    Electromagnetic Certification: EN62479; EN50663

    Radio Emissions Certification: EN300220-1&2; EN300328; EN301489-1;3;17

    Restriction of Hazardous Substances (RoHS): IEC62321

    Ecodesign Compliance: ErP Regulation (EU) 2015/1188 and Supplement (EU) 2016/2282 (Lot 20) when using Herschel Controls

    Warranty: 2 Years

    Note: Attempted use with any other heater brand will invalidate the warranty.
