Select – Infrared Ceiling Tile Heaters
What size panel do I need?use our
|Watts||Panel size cm||Heated area|
|350||60 x 60||6 - 8 m2|
|700||60 x 120||13 - 15 m2|
Heated areas change considerably according to building age, window area and other factors.
Be sure to use our wattage estimator or ask us for help.

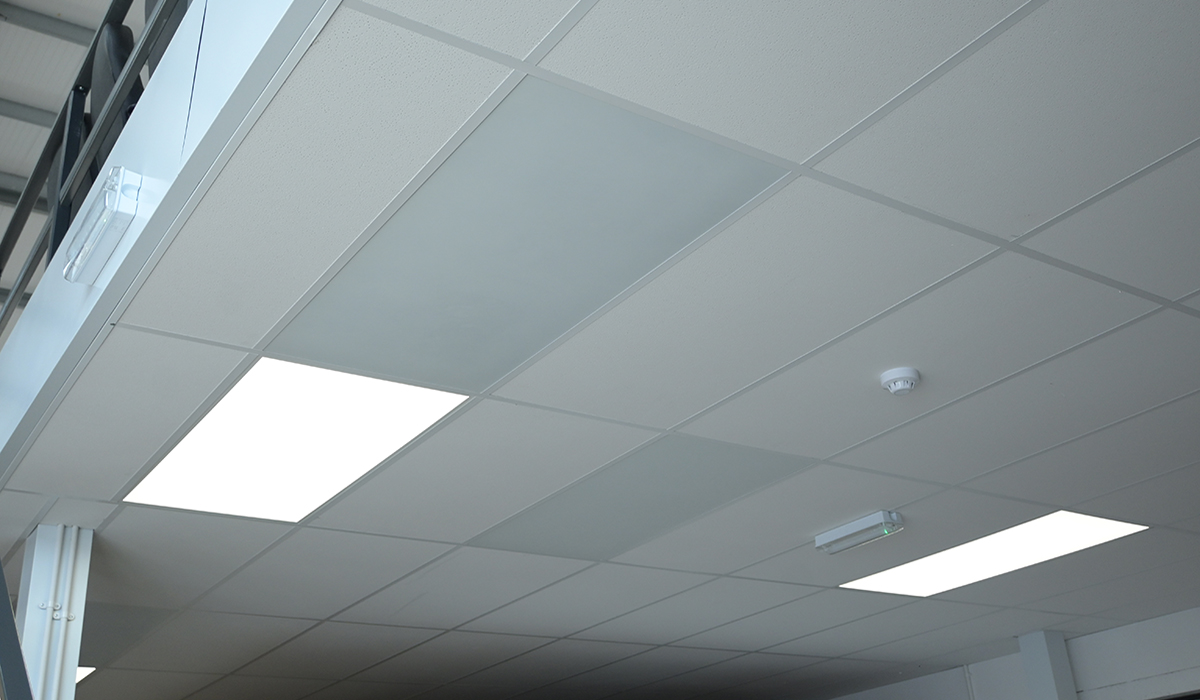

Herschel infrared ceiling tile heaters provide complete or supplemental heating in commercial, residential and public buildings. The infrared ceiling heaters provide clean, gentle, comfortable heat that is ideal for providing focused heat and not heating up unused areas. This saves substantial energy over other systems by heating people and objects rather than all the air in a room or building.

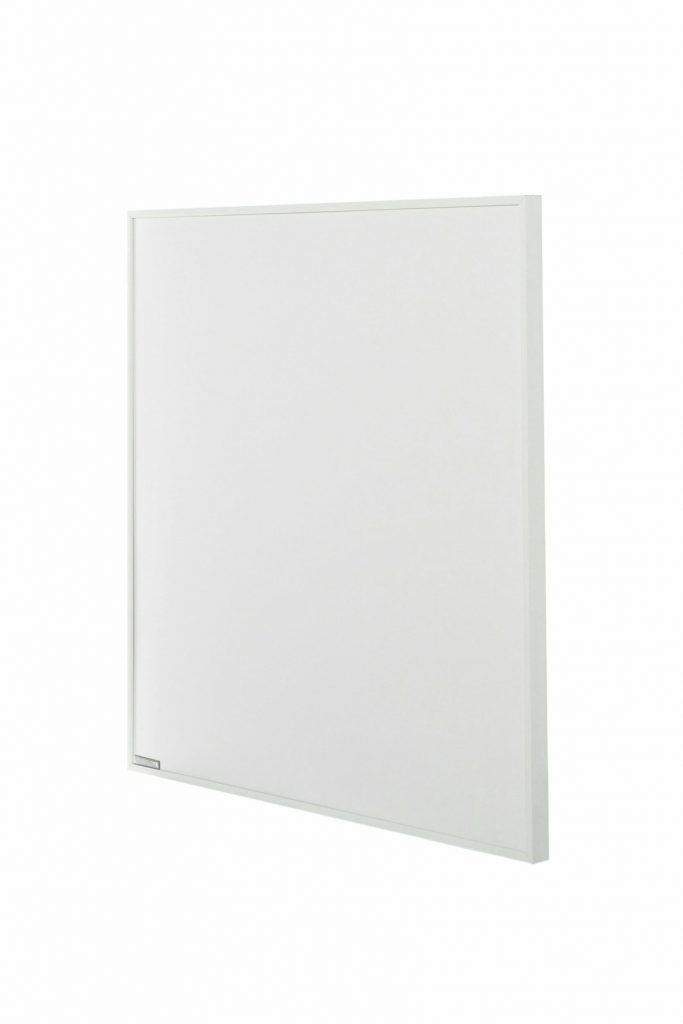

The 350 Watt heater fits 60 x 60 ceiling tiles and the 700 Watt heater fits the 60 x 120 Armstrong tiles. Both can also be mounted on a ceiling surface as well using the brackets included. The panels are easy to install and control using Herschel’s own iQ system or existing building management controls.
The infrared ceiling heaters are available only in a white aluminium finish with a white aluminium frame.
We offer a full service for office ceilings, including estimating your requirements via our survey service and our full product range is available through a wide UK distribution network. Available through all national electrical wholesalers, many regional electrical wholesalers, regional builders merchants, Travis Perkins and a number of resellers, online dealers and installers.
Click here to download the Data Sheet.
Click here to download the Installation Manual.
The heated areas are a guide only and assume a medium to well insulated space with an average floor to ceiling height of 2.40M. Contact Herschel for a full quote and specification.
Heating Element: Herschel COSIX© Cell Technology
Front: White Aluminium
Rear: Steel sheet
Cable: 2.5m power cable
Frame: White Aluminium
Voltage: 220-240V, 50/60Hz
Quality & Safety
TÜV GS Certification (TÜV SÜD Certification & Testing Co. Ltd)
EMC Certification (TÜV SÜD Certification & Testing Co. Ltd)
ErP Regulation (EU) 2015/1188 and Supplement (EU) 2016/2282 (Lot 20).Valid from 1 January 2018 when used with Herschel iQ
Guarantee: 60 months
Control Options (Required)
Herschel iQ MD1 Wired Thermostat
Herschel iQ T1 Wireless Thermostat Pack
Herschel iQ Hub
Herschel iQ WH1 Central Control Unit
