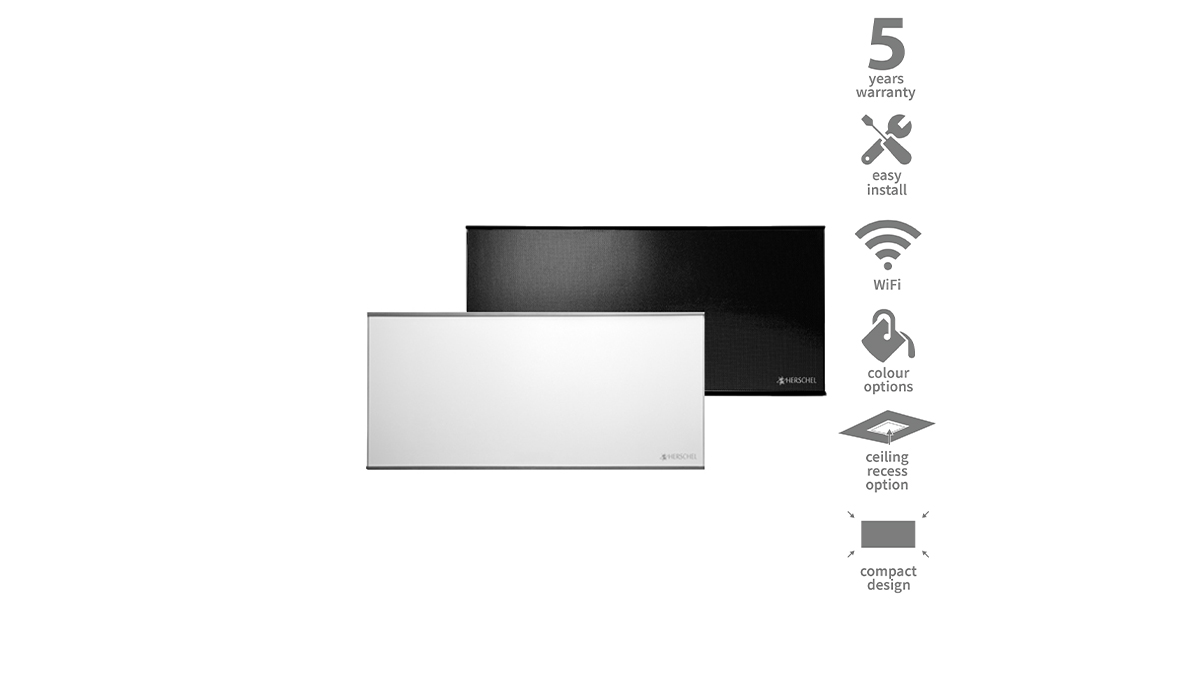

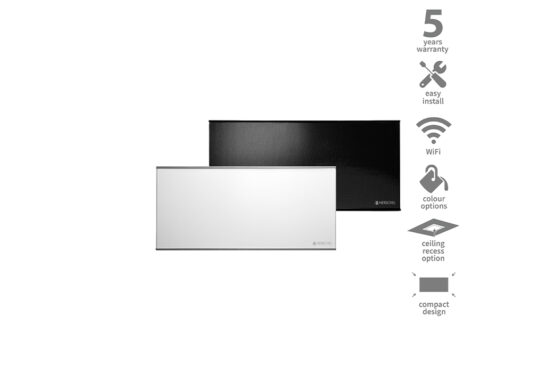

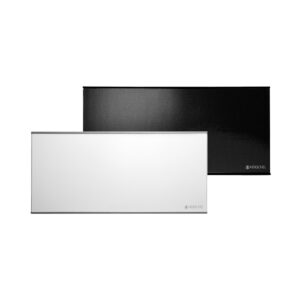

Krystal – Infrared Panel Heater

The award-winning design of the Herschel iQ MKW Mains Powered WiFi Thermostat is ideal for new builds / renovations where cabling can be neatly hidden whether it be for domestic or commercial applications and can control temperatures of up to 45°C. When used in conjunction with your WiFi network and the SmartLife App, MKW can run in fully programmable ‘Smart Mode’ enabling you to manage your heating as efficiently as possible whether you are home or away.

MKW is wired directly to the mains circuit and to the heaters and requires recessing into the wall or can be surface-mounted to the wall with a back box.

The MKW thermostat will operate your Herschel heater(s) by turning them on if the room temperature is lower than the desired temperature and turning them off once the desired temperature is reached. The MKW is easy to operate via the SmartLife App or via push buttons and incorporates the latest EcoDesign energy-saving features including Herschel’s open window technology.

MKW has a keypad locking feature (available from the App) to prevent unauthorised tampering making it suitable for commercial applications such as hotels, care homes, student accommodation and let properties.  The MKW is a 16 amp thermostat enabling up to 3.6 kW of Herschel heaters to be connected. They can be used with the Inspire, Select XLS or Herschel space heating range.

If using the MKW with the Select XLS panel range the SMART-R function of the XLS panel will be bypassed. The thermostat will have to be hard-wired directly to the heater as well as the mains. (It is not possible to pair wirelessly with the panel).

Note: Herschel iQ controls will only work with Herschel heaters.   *Attempted use with any other heater brand will invalidate the warranty.

With its award-winning designer finish and smart, flexible control via the SmartLife App, the Herschel iQ MKS Mains powered WiFi Thermostat provides the ideal choice for control of your infrared heating system. Perfect for new builds and renovations where cabling can be neatly hidden whether it be for domestic or commercial applications and can control temperatures of up to 45°C. When used in conjunction with your WiFi network and the SmartLife App, MKS can run in fully programmable ‘Smart Mode’ enabling you to manage your heating as efficiently as possible whether you are home or away.

MKS is wired directly to the mains circuit and to the heaters and requires recessing into the wall or can be surface-mounted to the wall with a back box.

The MKS thermostat will operate your Herschel heater(s) by turning them on if the room temperature is lower than the desired temperature and turning them off once the desired temperature is reached. The MKS is easy to operate via the SmartLife App or via push buttons and incorporates the latest EcoDesign energy-saving features including Herschel’s open window technology.

MKS has a keypad locking feature to prevent unauthorised tampering making it suitable for commercial applications such as hotels, care homes, student accommodation and let properties.  The MKS is a 16 Amp thermostat enabling up to 3.6 kW of Herschel heaters to be connected. They can be used with the Inspire, Select XLS or Herschel space heating range.

If using the MKS with the Select XLS panel range the SMART-R function of the XLS panel will be bypassed. The thermostat will have to be hard-wired directly to the heater as well as the mains. (It is not possible to pair wirelessly with the panel).

Note: Herschel iQ controls will only work with Herschel heaters.   *Attempted use with any other heater brand will invalidate the warranty.

The Herschel iQ MD2 Wired Thermostat is ideal for new builds / renovations where cabling can be neatly hidden whether it be for domestic or commercial applications. When used in conjunction with your wifi network and the SmartLife app, MD2 can also be controlled remotely via the internet, enabling you to manage your heating when you are away from the building.

MD2 is wired directly to the mains circuit and to the heaters and requires recessing into the wall.

The MD2 thermostat will operate your Herschel heater(s) by turning them on if the room temperature is lower than the desired temperature and turning them off once the desired temperature is reached. The MD2 is easy to operate, featuring a large digital touchscreen display and incorporates the latest EcoDesign energy-saving features including Herschel’s open window technology.

MD2 has a keypad locking feature to prevent unauthorised tampering making it suitable for commercial applications such as hotels, care homes, student accommodation and let properties.  The MD2 is a 16 amp thermostat enabling up to 3.6 kW of Herschel heaters to be connected.

Note: Herschel iQ controls will only work with Herschel heaters. The MD2 thermostat is not compatible with Remote models.

*Attempted use with any other heater brand will invalidate the warranty.

The Herschel iQ T2 Thermostat pack (including one T2 thermostat plus R2 Receiver) incorporates the very latest energy-saving technology and is specifically designed to regulate Herschel Infrared heaters. When used with wifi you can also regulate your heating remotely using the SmartLife App.

Easy to install it is perfect for installations where hard wiring to the MD2 Thermostat would be impractical (for example, if you wish to minimise chasing out walls/cable trunking).

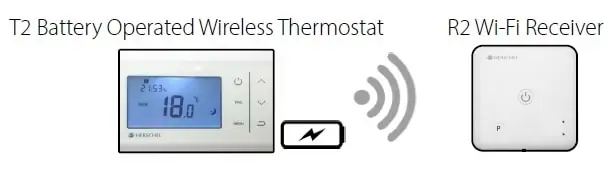

The T2 pack comprises a battery operated, wireless T2 Thermostat which can be wall mounted or free standing (and also includes one R2 Receiver).

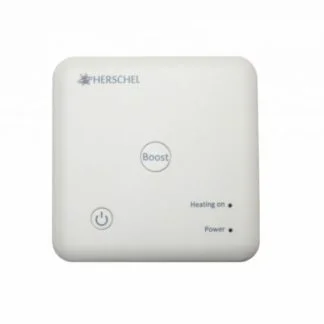

The R2 Receiver must be wired to the mains electricity supply and also to the Herschel heater(s). The T2 and R2 are paired wirelessly to each other and the R2 can also be paired to your wifi for SmartLife app control (if required).

The T2 will then control all R2s which are paired to it.  The T2 pack will control up to 2kW (at 230V supply) of Herschel Infrared heaters on one electrical circuit. To control more heaters in the same zone, or if you wish to use one R2 Receiver per heater, simply purchase additional R2 receivers and pair them to the T2.

The T2 features 2 manual modes and 7 x 1 day programming and is an easy to operate thermostat. The T2 incorporates the latest EcoDesign energy-saving features including Herschel’s open window technology and an adaptive start function ensuring your room is always at the right temperature with the least energy use.

Note:

Herschel controls will only work with Herschel heaters.  Attempted use with any other heater brand will invalidate the warranty.

A T2 must be used even if SmartLife app control is to be the primary means of controlling your heating (i.e. you cannot use just the App and R2).

The T-T2 pack incorporates one T2 thermostat and one R2 Receiver.

The Herschel iQ R3 Thermostat is a stand-alone thermostat control unit that works together with the Smart Life App to control your Herschel Infrared heaters. The R3 controller is both a thermostat and receiver combined. The R3 thermostat is wired to both the heaters and mains-power, there is no need for a separate unit within the room.

The R3 senses the temperature in the room, sends data via WiFi to the App, which returns control commands to the heater to switch it on and off according to your heating settings in the App.  The R3 will not function properly without WiFi or the App. The R3 Receiver features a convenient 1 hour Boost function – press the Boost button and top up your heating for one hour, regardless of existing App settings. All other control functions are provided from the Smart Life App.

The R3 is ideal where you are looking to control your heaters via App. Simply download the Smart Life App to a phone or tablet and control your Herschel Comfort and Herschel Inspire infrared panel heaters via App, from anywhere in the world with WiFi connectivity, at the top of a button. Herschel Smart Switches can also be added for centralised control of all thermostats, working in conjunction with the Smart Life App. Use the Touch Screen Control Centre for handy, quick and customised control from a central hub. Alternatively, the Four Scene Control will run 4 control functions with just one click.

Herschel iQ R3 thermostat incorporates the latest energy-saving features including Herschel’s open window technology, ensuring your room is always at the right temperature with the least energy use. The Smart Life also allows you to control the system by voice using Alexa or Google Assistant.

The R3 is a 10 amp mains-wired unit and will safely control up to 1.8kW of heating load per unit.  It can also be used to trigger a contactor to manager greater heating loads if required.

Note:

Herschel controls will only work with Herschel heaters.  Attempted use with any other heater brand will invalidate the warranty.

The R3 is not interchangeable with the R2 or vice versa.

Take full control of your heating routines with the Herschel Touch Screen Control Centre, a central hub where you can activate Smart Life Scenes to fully customise your heating to fit around your schedule. Decided to head out for the day or going on holiday for longer? Save energy by never heating an empty home through Tap-to-Run Scenes, which can override any existing Schedules to ensure you have full control over your infrared heating. The Touch Screen Control Centre can be conveniently controlled using the 4″ touch screen display; where you can quickly access two of your chosen Scenes from the home screen, or simply swipe right to find all Configured Scenes on your Smart Life app. This display also features the time, date, and weather status.

Not home? The Touch Screen Control Centre can also be controlled remotely through the Smart Life App, so no matter where you are, you will always have full control over your infrared heating.

The Touch Screen Control Centre is wired directly to the mains circuit, and must be installed within range of a 2.4Ghz WiFi network. The Touch Screen Control Centre is designed to operate with Smart Life Scenes, so no wiring directly to the panel or thermostats is required.

The unit size is 86 x 86 x 36mm.

The Ultra iQ Range (S-TSCC, S-FSC, S-HSS, and PIR001) are Energy-Saving Accessories and must be used in conjunction with thermostats. These are not thermostats.

Note: The Touch Screen Control Centre will not work with the T-BT Battery Powered Thermostat.

Easily activate 4 Tap-to-Run Scenes with the Herschel Four Scene Control to fully control your heating, your way. With unlimited potential, you can create Scenes that are perfect for your routines, and conveniently activate them with one tap of a button using this smart control. This control is designed to be used with Tap-to-Run Scenes through Smart Life, which can override any Schedules to give you more control with a tap of a button. Going on holiday? Simply tap the Holiday icon and your infrared heaters will automatically stay off until you are back, helping to save energy and reduce running costs. Feeling cold? Tap the On icon to turn your infrared heaters on to give you a boost in heating. You can assign any Scene to any button through the Smart Life App to make the control personalised to you and your heating preferences.

There are 4 colour options available for your Four Scene Control; White, Brushed Silver, Brushed Gold and Black. Size is 86 x 86 x 33mm.

Not home? The Four Scene Control can also be controlled remotely through the Smart Life App, so no matter where you are, you will always have full control over your infrared heating.

The Four Scene Control is wired directly to the mains circuit, and must be installed within range of a 2.4Ghz WiFi network. The Four Scene Control is designed to operate with Smart Life Scenes, so no wiring directly to the panel or thermostats is required.

The Ultra iQ Range (S-TSCC, S-FSC, S-HSS, and PIR001) are Energy-Saving Accessories and must be used in conjunction with thermostats. These are not thermostats.

Note: The Four Scene Control will not work with the T-BT Battery Powered Thermostat.

Easily activate 4 Tap-to-Run Scenes with the Herschel Four Scene Control to fully control your heating, your way. With unlimited potential, you can create Scenes that are perfect for your routines, and conveniently activate them with one tap of a button using this smart control. This control is designed to be used with Tap-to-Run Scenes through Smart Life, which can override any Schedules to give you more control with a tap of a button. Going on holiday? Simply tap the Holiday icon and your infrared heaters will automatically stay off until you are back, helping to save energy and reduce running costs. Feeling cold? Tap the On icon to turn your infrared heaters on to give you a boost in heating. You can assign any Scene to any button through the Smart Life App to make the control personalised to you and your heating preferences.

There are 4 colour options available for your Four Scene Control; White, Brushed Silver, Brushed Gold and Black. Size is 86 x 86 x 33mm.

Not home? The Four Scene Control can also be controlled remotely through the Smart Life App, so no matter where you are, you will always have full control over your infrared heating.

The Four Scene Control is wired directly to the mains circuit, and must be installed within range of a 2.4Ghz WiFi network. The Four Scene Control is designed to operate with Smart Life Scenes, so no wiring directly to the panel or thermostats is required.

The Ultra iQ Range (S-TSCC, S-FSC, S-HSS, and PIR001) are Energy-Saving Accessories and must be used in conjunction with thermostats. These are not thermostats.

Note: The Four Scene Control will not work with the T-BT Battery Powered Thermostat.

The PIR Sensor works with Herschel Wifi-enabled thermostats to give you extra energy savings on your heating based on room occupancy when the heating is on. (Why have the heating on full blast in a room noone is in?).

We recommend you set up your Herschel Thermostats to run in Smart Mode as normal.

But then with the PIR sensor you can add “Scenes” to the Smartlife App (see an example Scene here) to turn the thermostat down if you are away from the room and turn it back up when you return. Say, for example, your living room is usually set for 21°C from 18:30 until 22:30, but you go out to dinner. Rather than keep heating a room you are not in, the PIR Sensor will turn your heating down while you are out.

As another example, you can also use it to keep the heating on if (for example) you are working late in a room that usually turns its heating down earlier in the evening.

The PIR Sensor is a battery operated WiFi unit. You will need one sensor for each room you want to check for occupancy. The sensor will work effectively in small to medium-size houses (e.g. 2-3 bedrooms) when paired directly to the  main router. For larger buildings using network extenders, the sensors should be paired with the extenders.

The PIR sensor must be used in conjunction with a Herschel Thermostat, it will not control your heating just on its own.

Click here to watch our video on how to use Smart Life Scenes with the Herschel PIR Sensor:

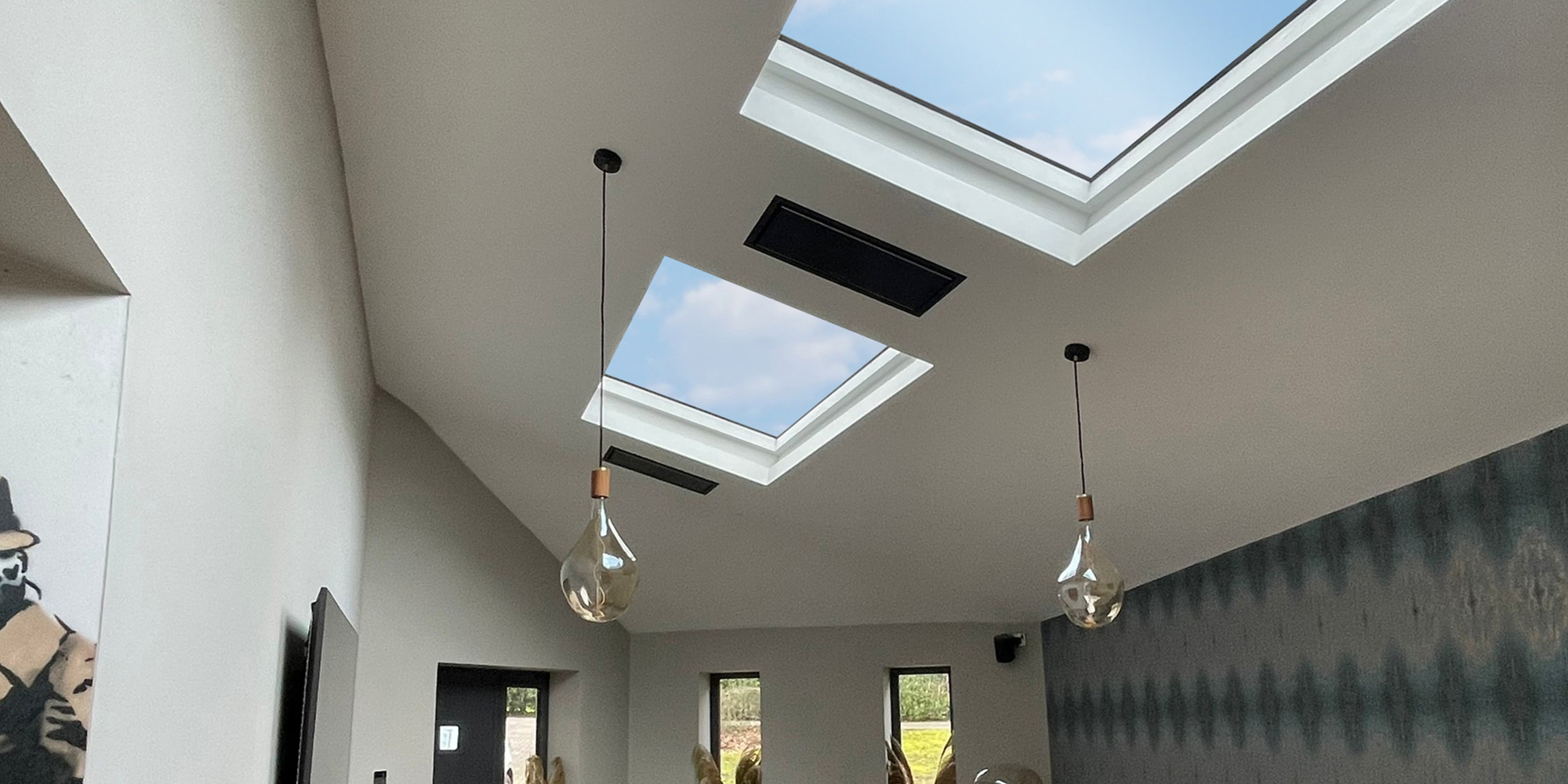

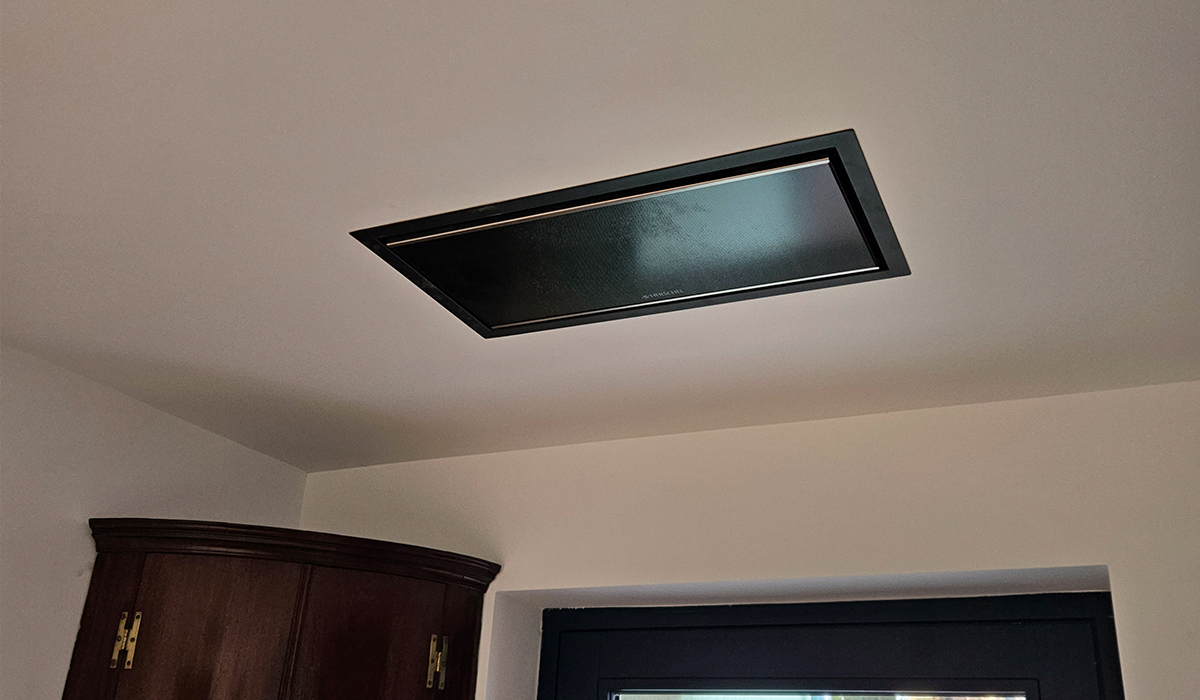

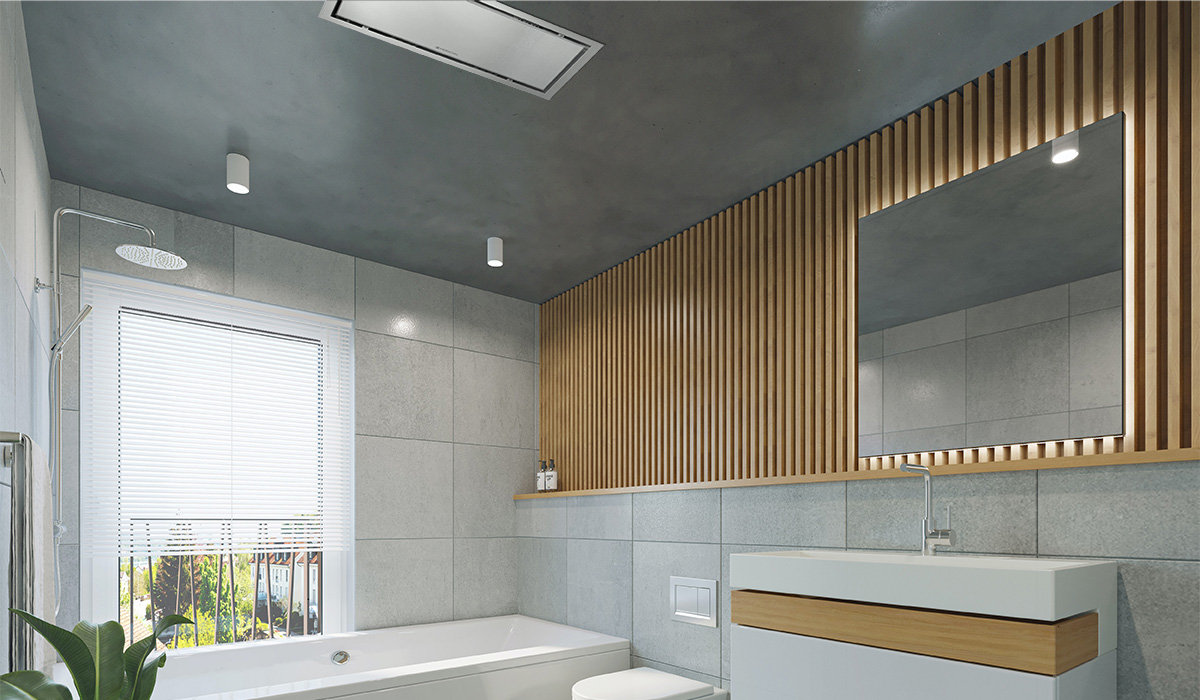

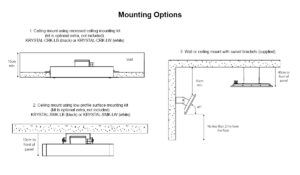

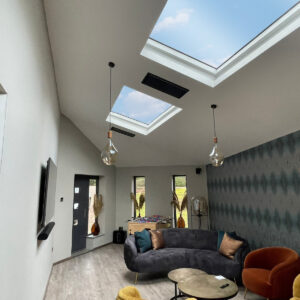

The Black Krystal Ceiling Recess Kit enables flush installation of the Krystal heater into plasterboard ceilings that have a void. The Kystal Ceiling Recess Kit is also available in white (KRYSTAL-CRK-LW).

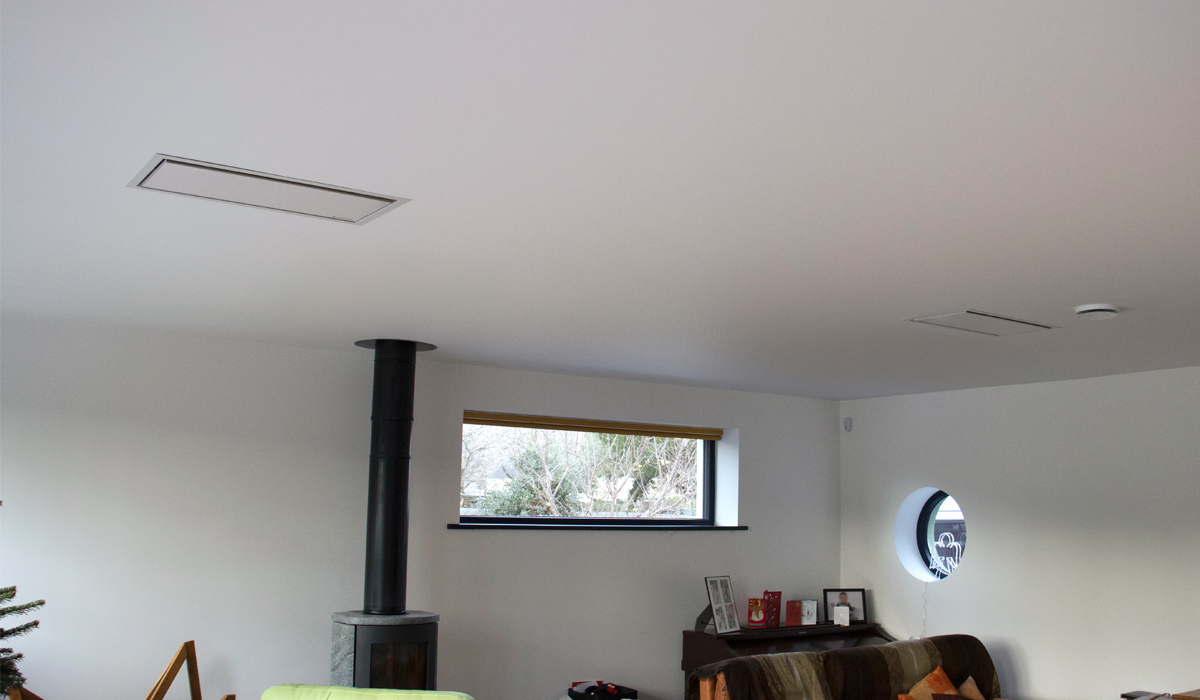

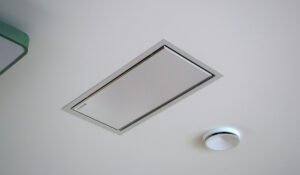

The Krystal White Ceiling Recess Kit enables flush installation of the Krystal heater into plasterboard ceilings that have a void. The Kystal Ceiling Recess Kit is also available in black (KRYSTAL-CRK-LB).

The Krystal White Surface Mounting Kit allows low profile surface mounting of the Krystal heater to the ceiling and is also available in black (KRYSTAL-SMK-LB).

The Krystal Black Surface Mounting Kit allows low profile surface mounting of the Krystal heater to the ceiling and is also available in white (KRYSTAL-SMK-LW).
