Heating public spaces – Herschel Pulsar

Watts Panel size cm Heated area
2400 (Black) 80 cm Dia 12-20 m2 from 2.8m height
1800 (White) 80 cm Dia 8-15 m2 from 2.5m height

£1,559.00 inc. VAT

Colour and Power *


Next Day Delivery
DIY Friendly
Reduce heating Cost
Highly energy efficient
5 Warranty
Zero maintenance

Description

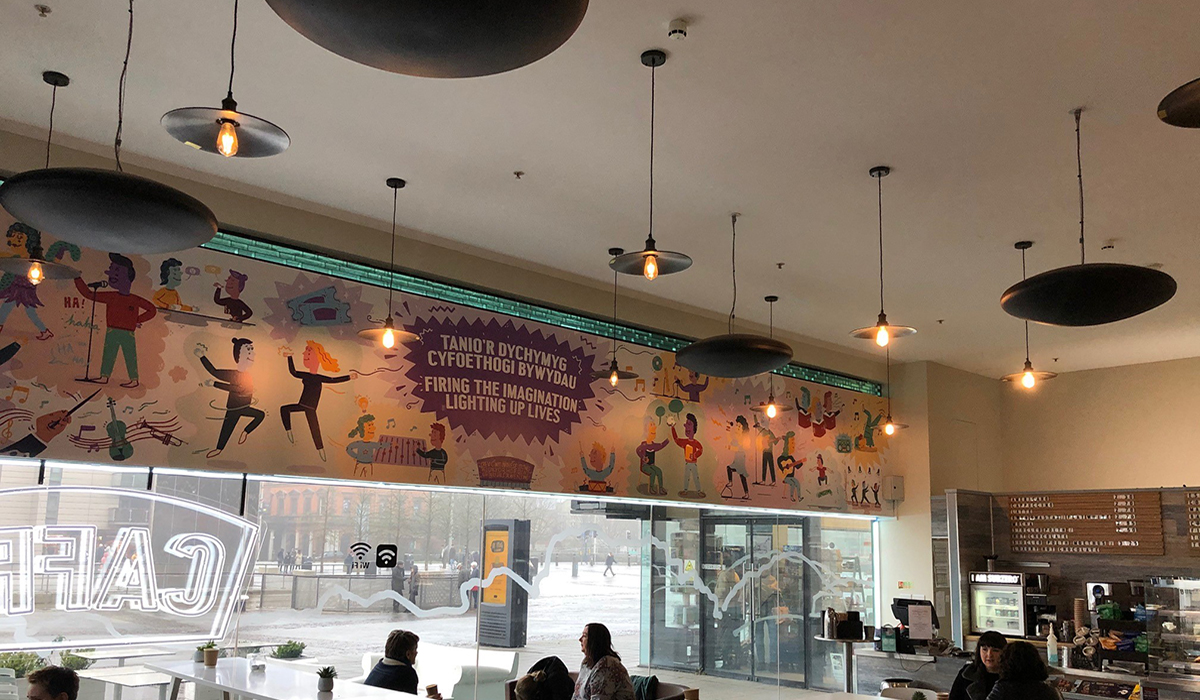

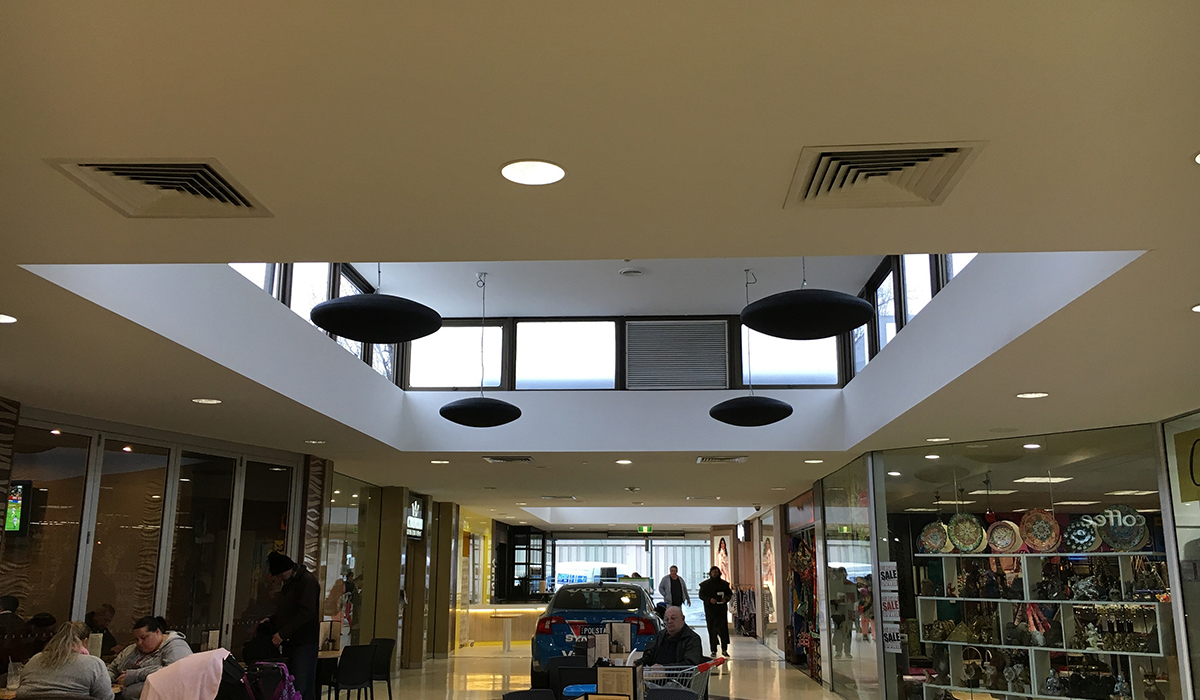

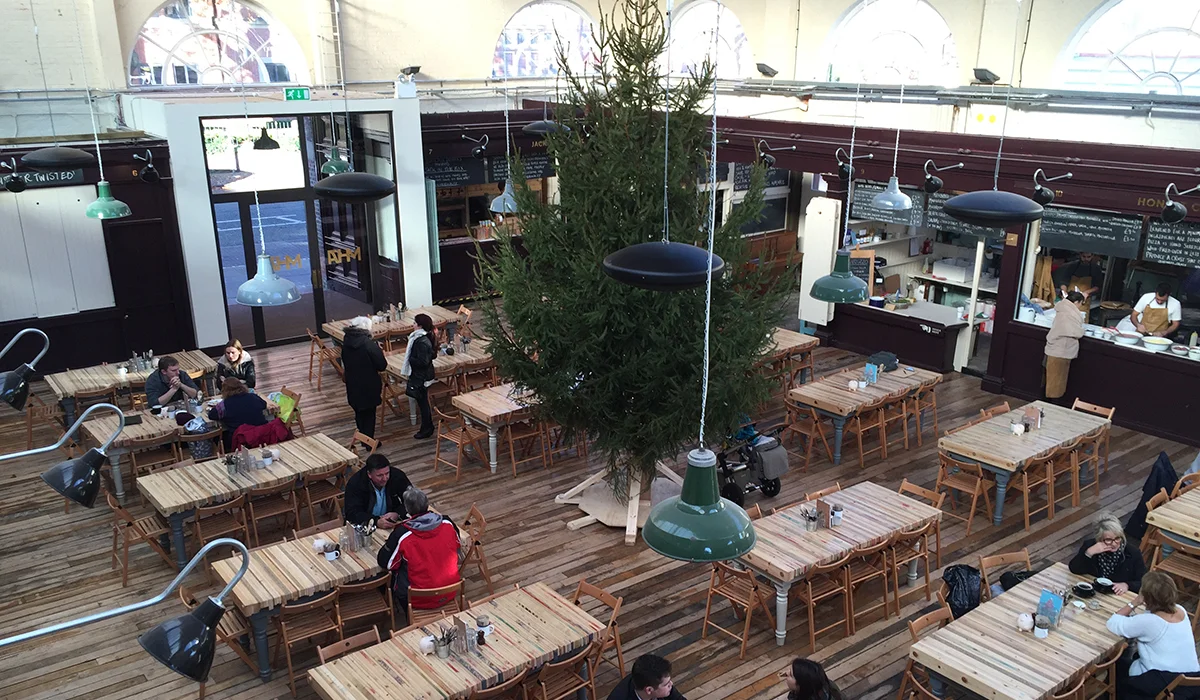

The Pulsar is a ceiling-mounted infrared heaters designed for high ceiling installations / large spaces in constant use. Its striking appearance and heat efficiency make Pulsar ideal for heating public spaces in commercial areas, shops, showrooms, sports facilities and public halls where it will be in the public eye.

When installed in combination with modern control systems that turn the heating on just before it is required and off when you leave (or actually just before) Pulsar has successfully delivered significant cost-savings to clients compared with their existing systems (please inquire for case studies).

Each Pulsar unit produces effective comfortable levels of heat for very low wattage.

The Herschel PULSAR must be located in a position to allow proper and efficient use but one that ensures hot parts are not touched accidentally. The recommended installation height of the White 1800W Pulsar is 2.3m – 2.5m (90” – 98”) from the floor.  The recommended installation height of the Black 2400W Pulsar is 2.5 – 2.8m (98″ -110”) from the floor.  Under no circumstances is either unit to be installed at less than 1.8m (71”) from the floor. In all cases it should be installed at a height where it cannot be touched in operation. Consideration should be given to any temporary or occasional additions such as stages or platforms, and the height should be adjusted accordingly.

The Herschel PULSAR should be firmly and permanently attached to a solid surface with a minimum clearance of 0.60m (23.6”) between the top surface of the heater and the ceiling. Fixing must be effected by a mounting plate and support chain or wire capable of carrying up to 112kg (equal to 4x the weight of the Pulsar).

Additional benefits:

  • As there are no exhaust emissions there is no requirement for planning;
  • They operate silently and without fumes – consequently raising no health and safety issues;
  • Installation is much cheaper than oil or gas alternatives – all you require is electric cable;
  • No maintenance. You do not have to maintain an infrared heater once installed;
  • You can “focus” the heat exactly to where you want it – because there is no convection of heat, none is wasted blowing into areas it is not wanted;
  • Far Infrared has been shown to have positive effects on metabolism, being the waveband at which water (80% constituent of skin) most effectively absorbs heat.

The Pulsar can be used anywhere there is a requirement to heat a large space and where the heaters themselves can be placed well out of reach. So workplaces like workshops, industrial or commercial units, warehouses etc make ideal locations for heaters of this sort.

Click here to download the Data Sheet.

Click here to download the Pulsar Installation Manual.

Technical Data:

Surface: Black or White enamelled steel

Heating element: Ceramic heating elements

Voltage: 230 Volt, 50 Hz (Power supply must not exceed 245 volts as this will void the warranty).

Electromagnetic tolerance: Low emission

Protection class: IP 20 (Installation)

Certificates and Reports: CE

Guarantee: 60 months

Colours:

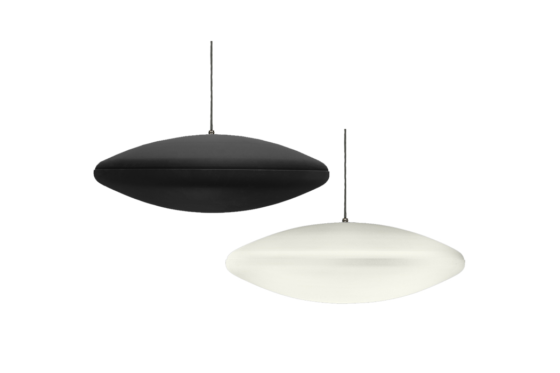

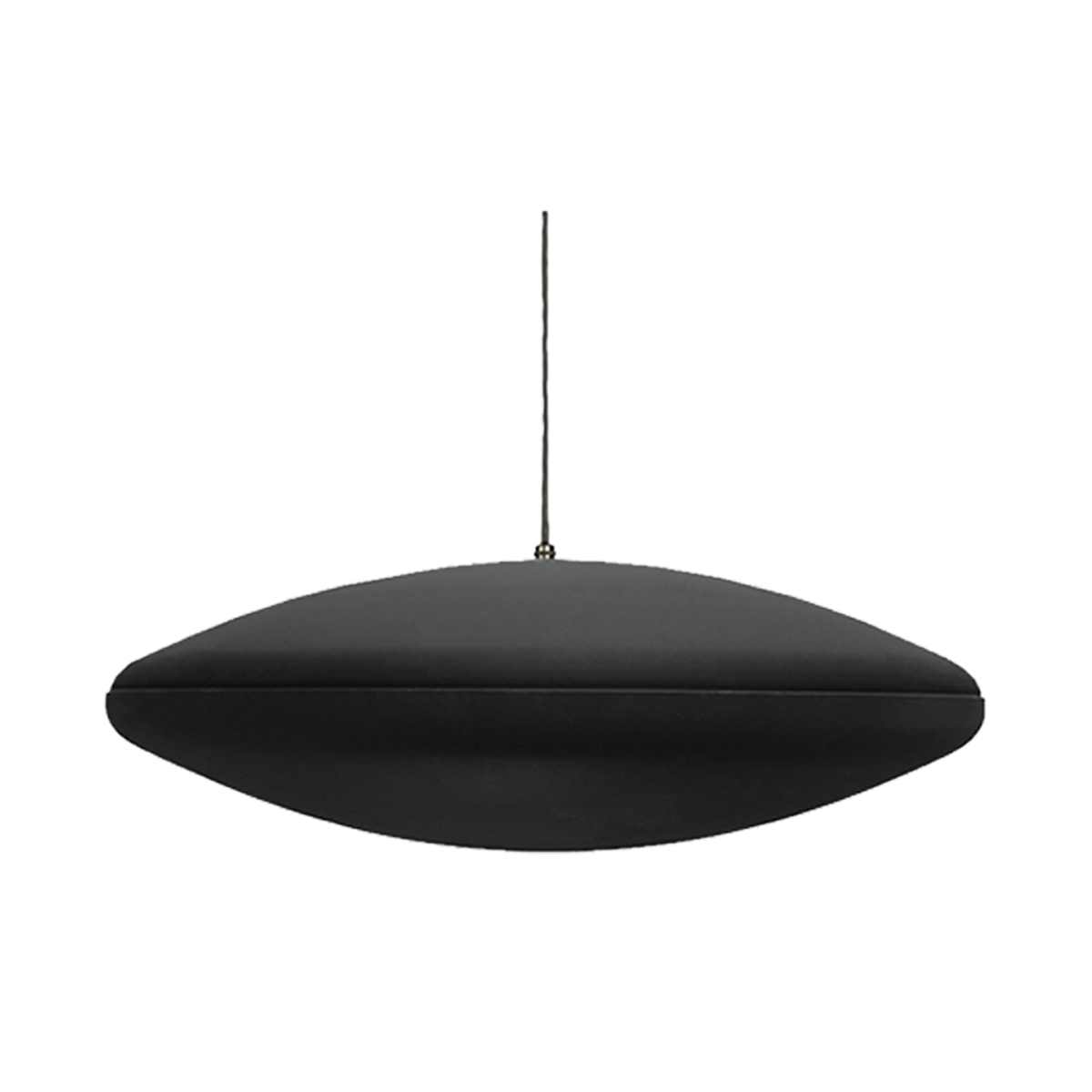

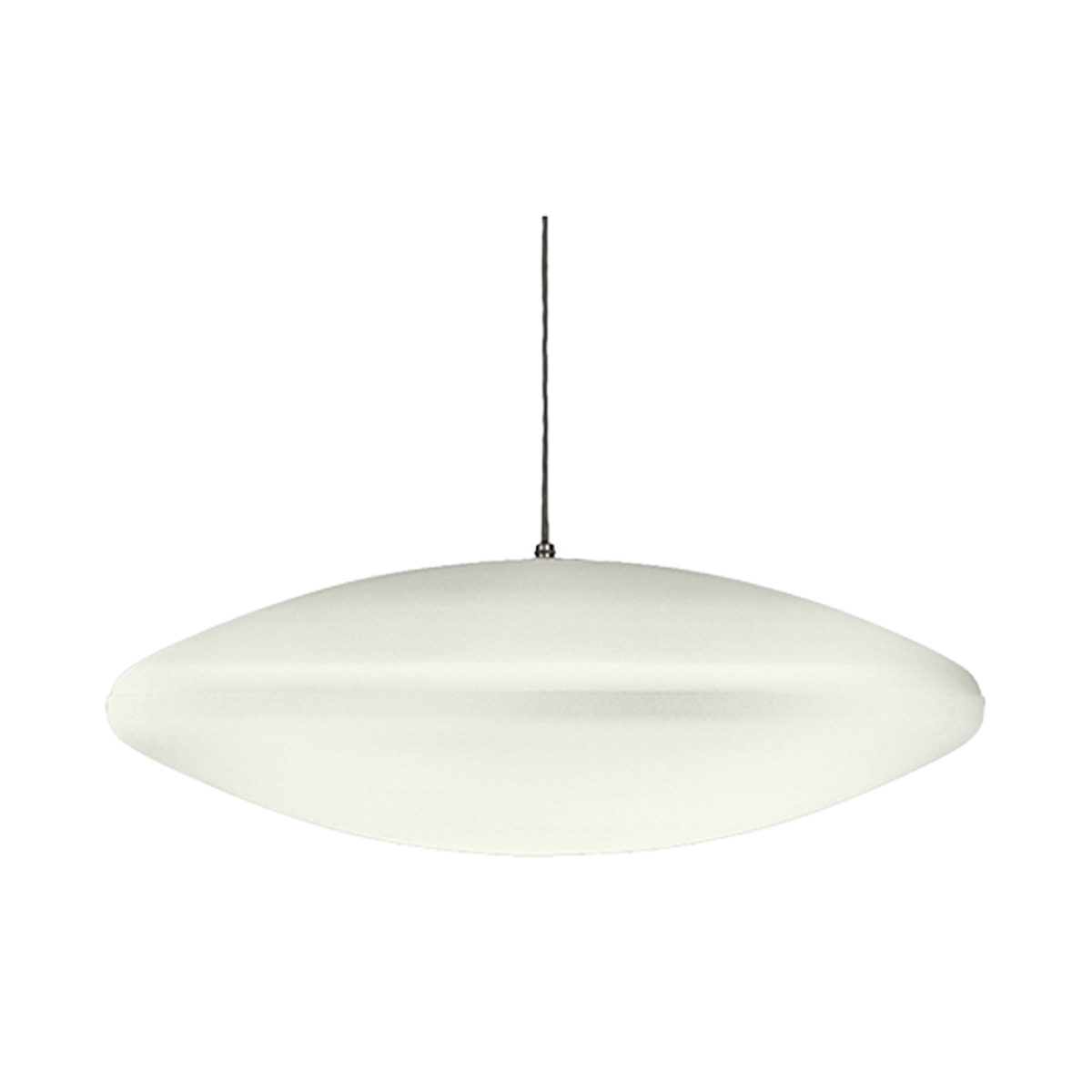

Black (2400 Watts) or White (1800 Watts)

Installation:

Hanging System: This unit is for ceiling mounting only and must be installed beyond the reach of people due to the high surface temperature.

Heated Zone: 8-15m2 (1800W) and 12-20m2 (2400W)

The heater will directly warm people and objects within the Heated Zone (note: air movement may reduce area coverage). Within enclosed areas the thermal mass of the building will also be heated within the entire zone.  Dependent upon the property age/type, insulation levels, number of heaters used and running times this will increase the ambient temperatures. For larger commercial projects or where different mounting heights are required we would always recommend Herschel carry out a survey or detailed desktop assessment.

Quality & Safety

CE

IEC 60335-1; 60335-2-30 Electrical & Construction Safety Tested

RoHS compliant

Guarantee: 60 months

Certifications for Aspect IR









2 reviews for Heating public spaces – Herschel Pulsar

  1. On behalf of Jeffreys Interiors:
    We’ve had the pulsars on since we installed them and they provide the space with a constant low level of warmth which is perfect as we’re not ever too hot/too cold. A lot of customers can’t believe that the heat they are feeling is coming from these.

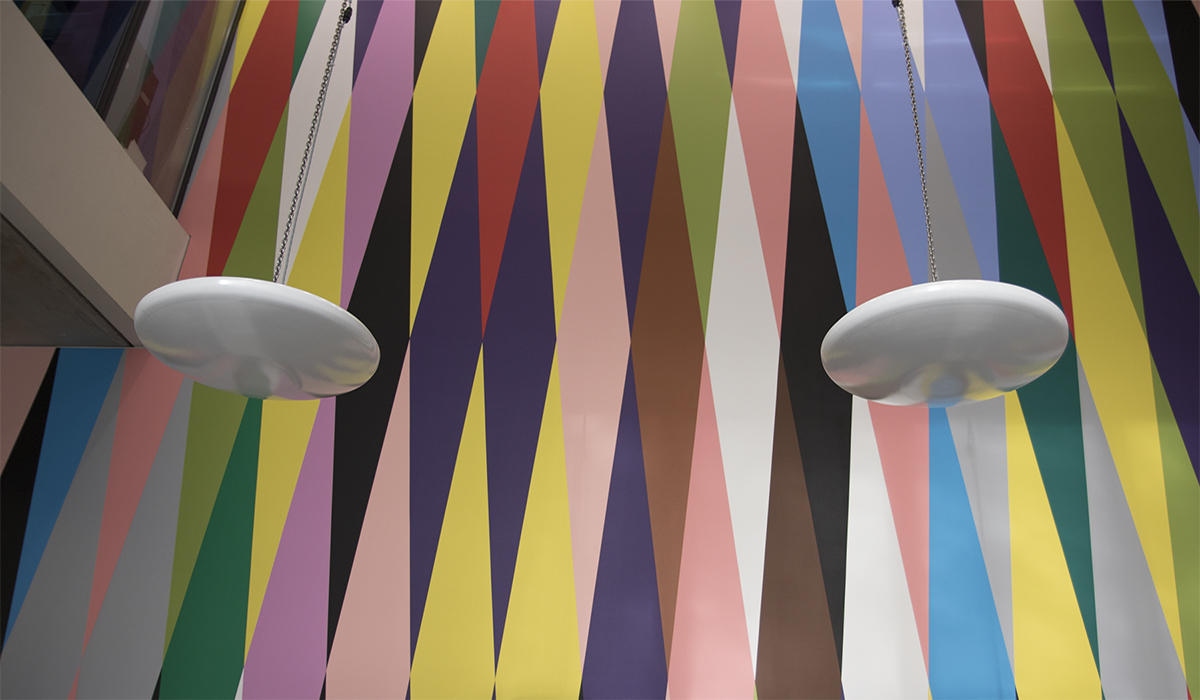

  2. “We successfully installed the Herschel Pulsar units at our site in Paddington. They look great and are working very well keeping the reception staff comfortable. I am surprised by how effective they actually are considering the kW rating of the units.

    To sum up why I am so happy with the heaters:

    The heaters provide a natural feeling warmth that gently raises the temperature of the occupants and surrounding area. The heaters are not obtrusive in their workings, they warm the people and surrounding surfaces without ever feeling like artificial heat.

    They have proved great for our staff morale, are very safe and overcome the challenges on our site around air flow and stratification. A very elegant solution. Thanks for such a great product and the advice around the installation”.

    Floyd Milligan, City of Westminster College, Paddington Green, W2 1NB
