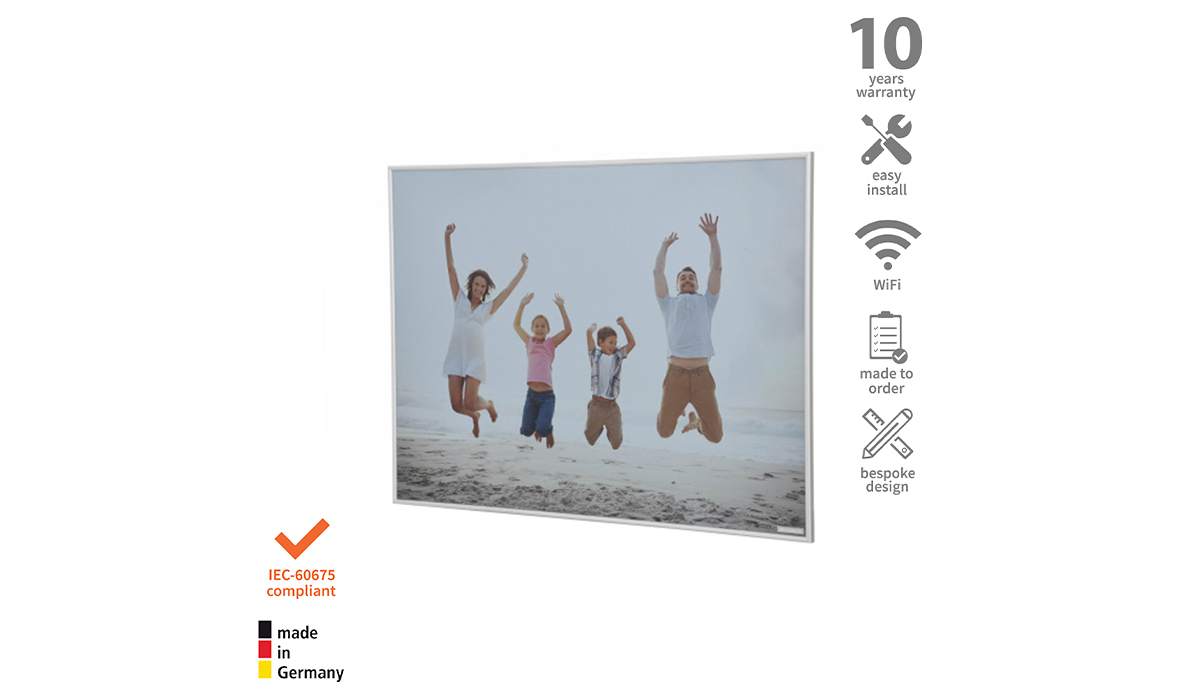

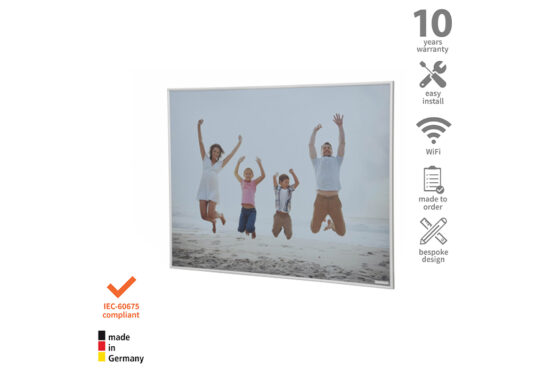

Inspire Picture- Infrared Panel Heater
FROM £539.00
(6 reviews)
Inspire infrared Picture Picture Panel Heater

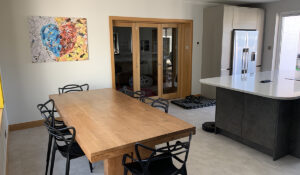

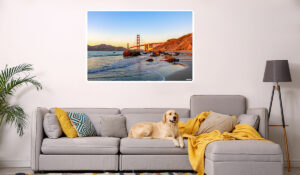

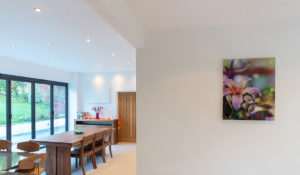

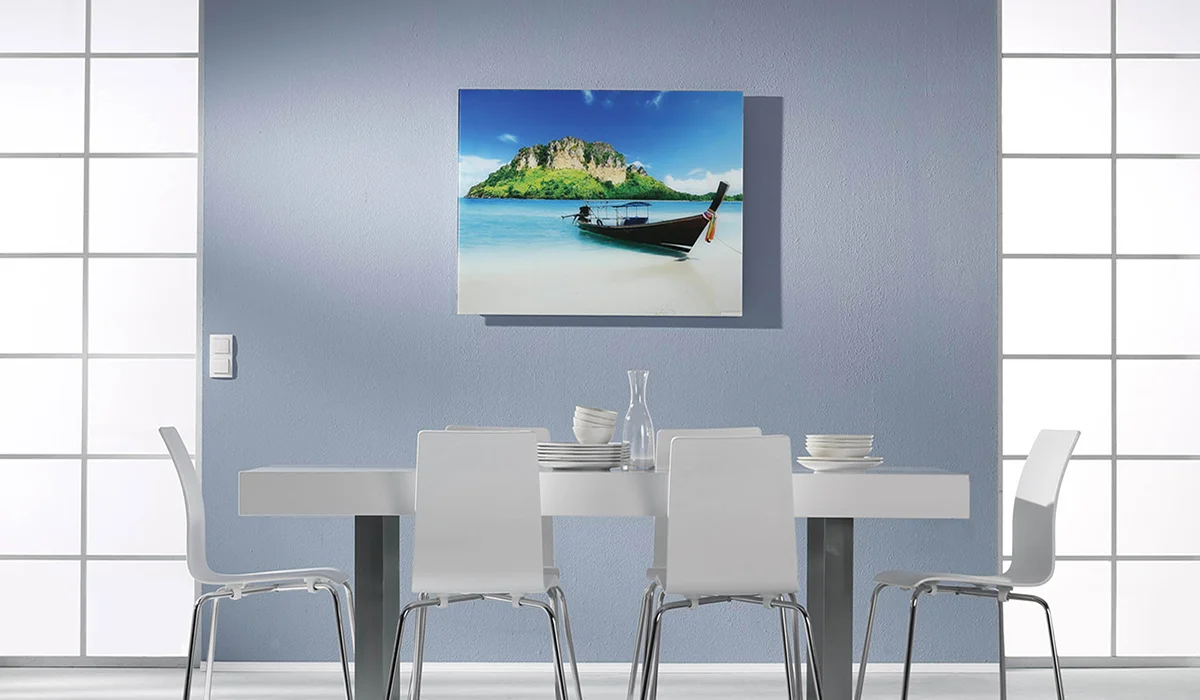

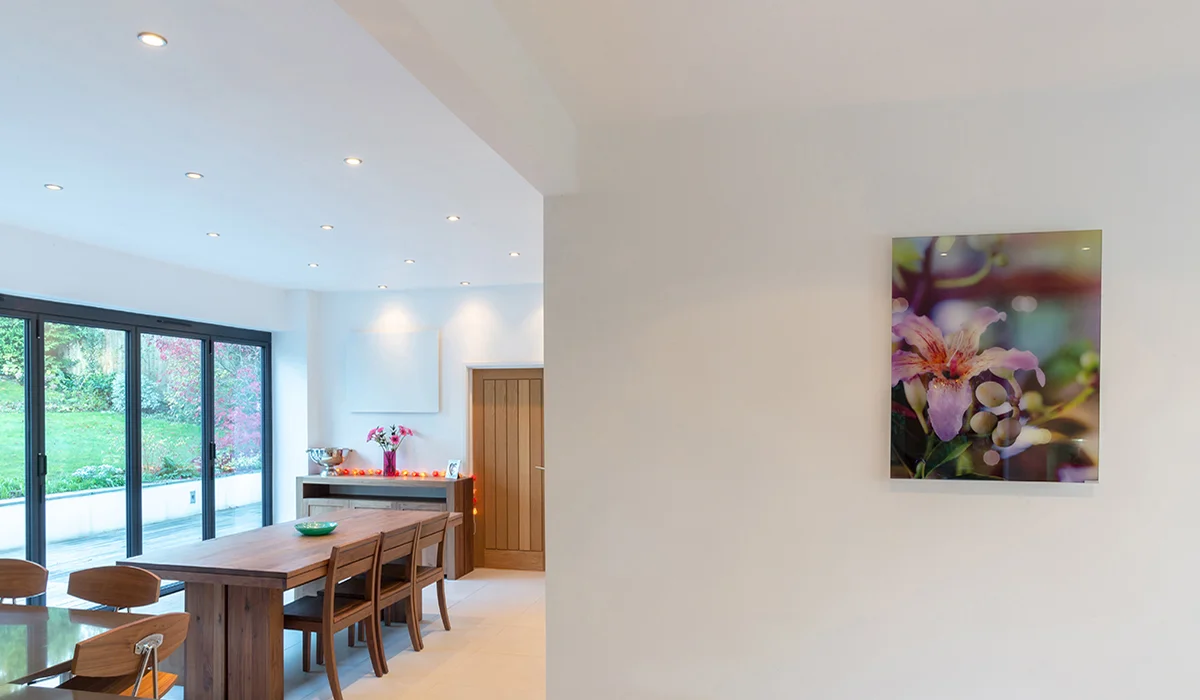

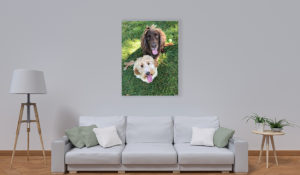

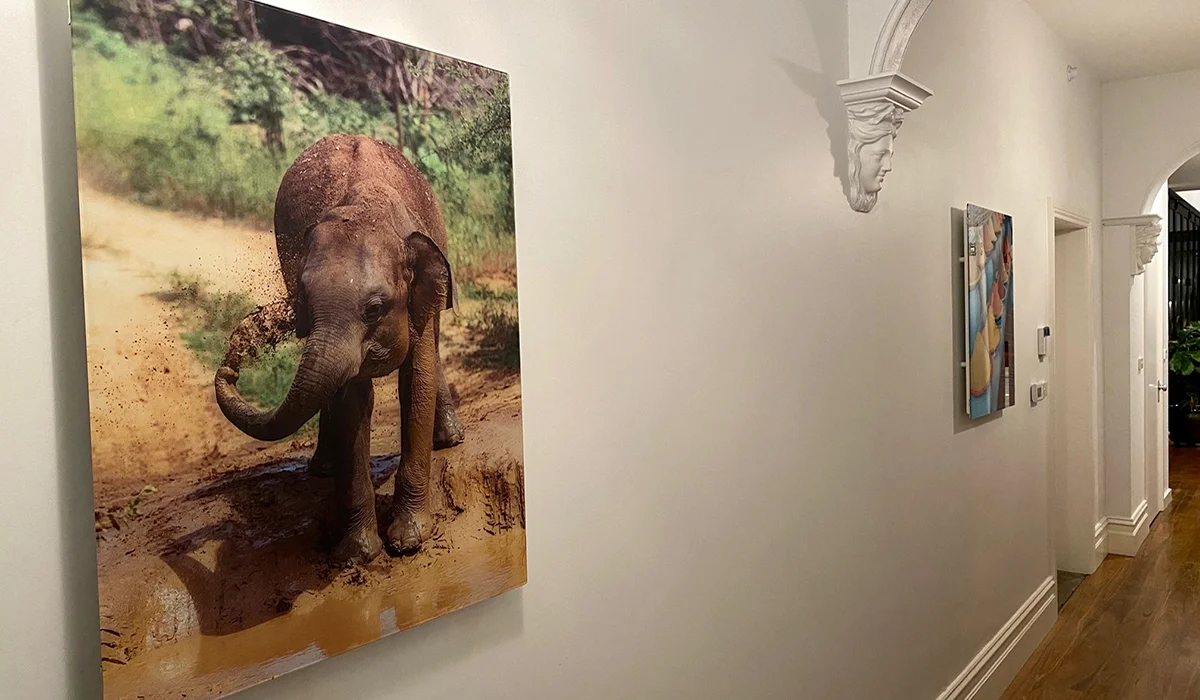

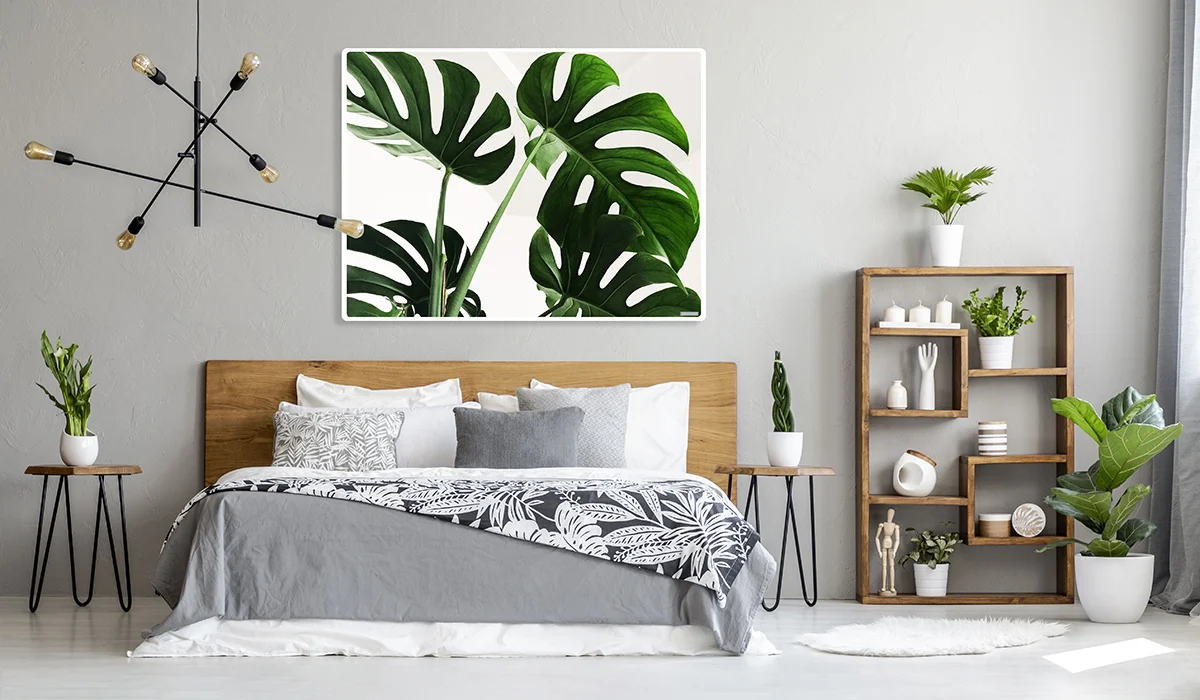

360 Inspire infrared Picture Picture Panel Heater Herschel panel heaters Inspire Picture Panel featuring "Bridge of Glass" by Dale Chihuly Inspire Picture Panel in Kitchen dining area Inspire Picture Inspire Dachshund dog Picture infrared panel heater Inspire Picture dining room Inspire Dog picture Inspire infrared picture panel heater in lounge Herschel Inspire picture panel Elephant

Inspire Picture- Infrared Panel Heater

FROM £539.00
(6 reviews)

Key Features:

  • Made to order in Germany
  • Use your own favourite image
  • Gloss finish
  • Highest quality 100% German components
  • Wall mount only
  • Use with Herschel IQ controls

Made in Germany





Upload your image in checkout. We will contact you to discuss details following your purchase.  Special Order – this may take up to 6 weeks.

What Panel Size Do I Need?

MODEL / WATTAGE DIMENSIONS HEATS M² PRICE

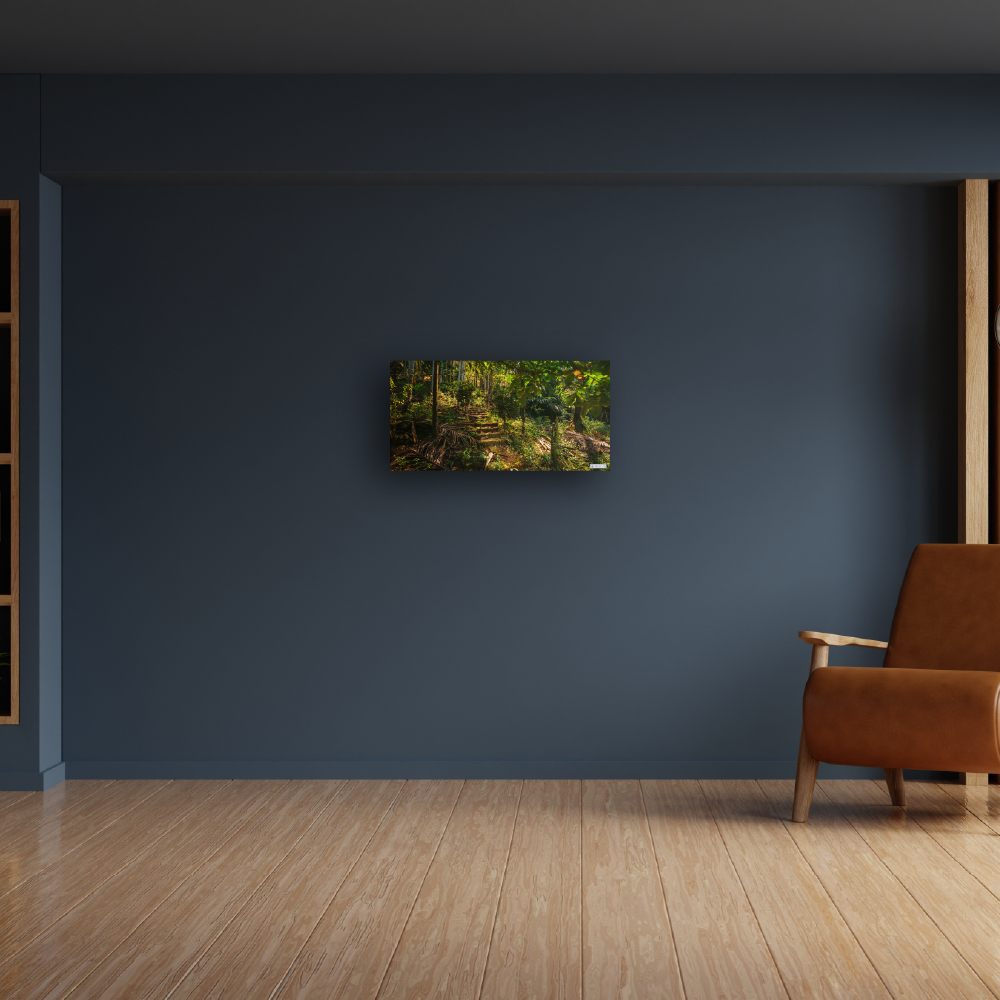

BH-200

250W

30 x 60cm

3 - 5

£539.00

BUY

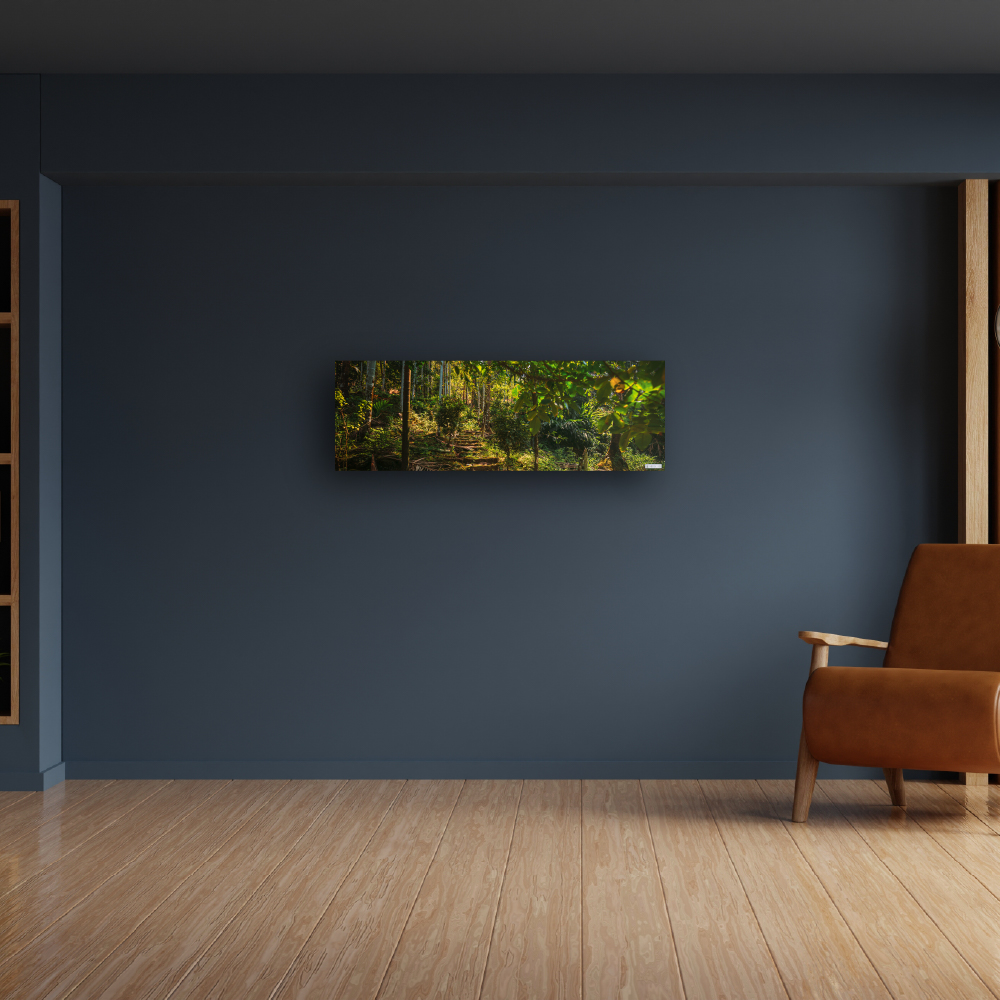

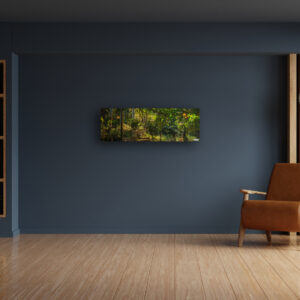

BH-300

350W

30 x 90cm

4 - 7

£779.00

BUY

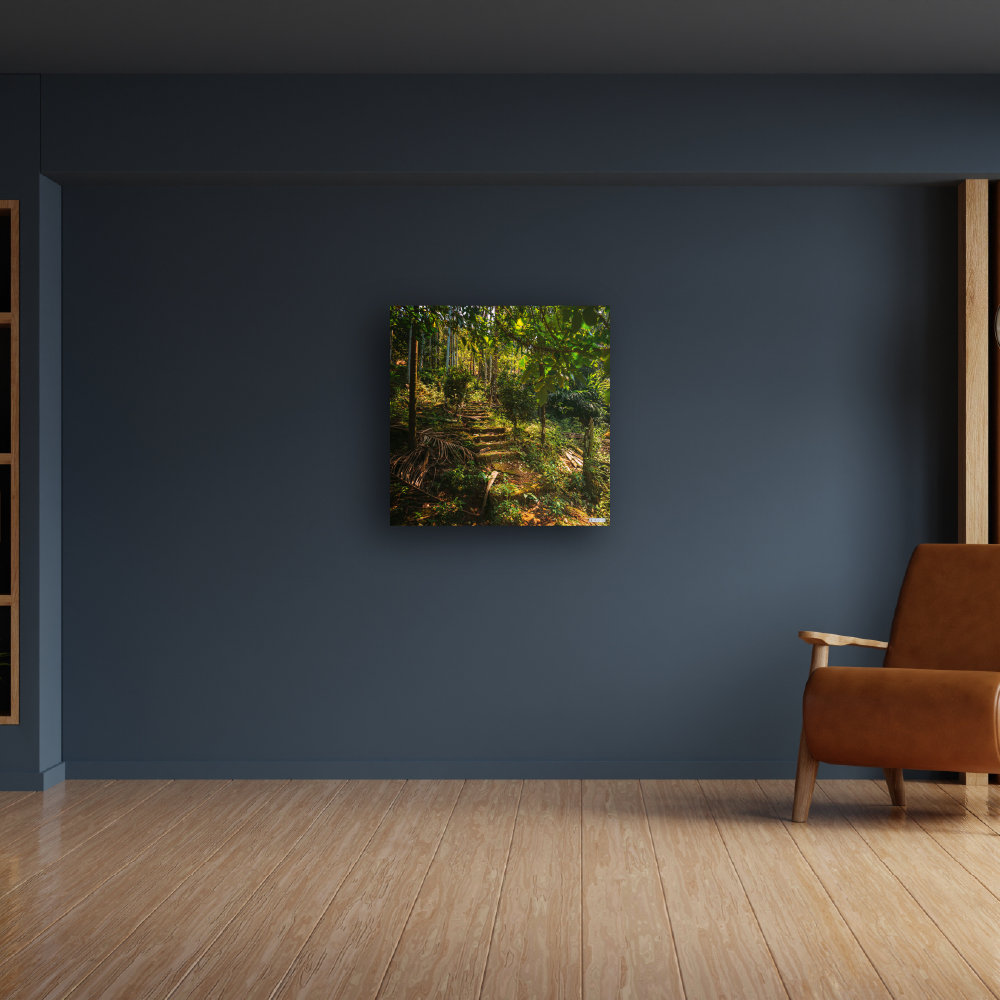

BH-400

420W

60 x 60cm

5 - 8

£839.00

BUY

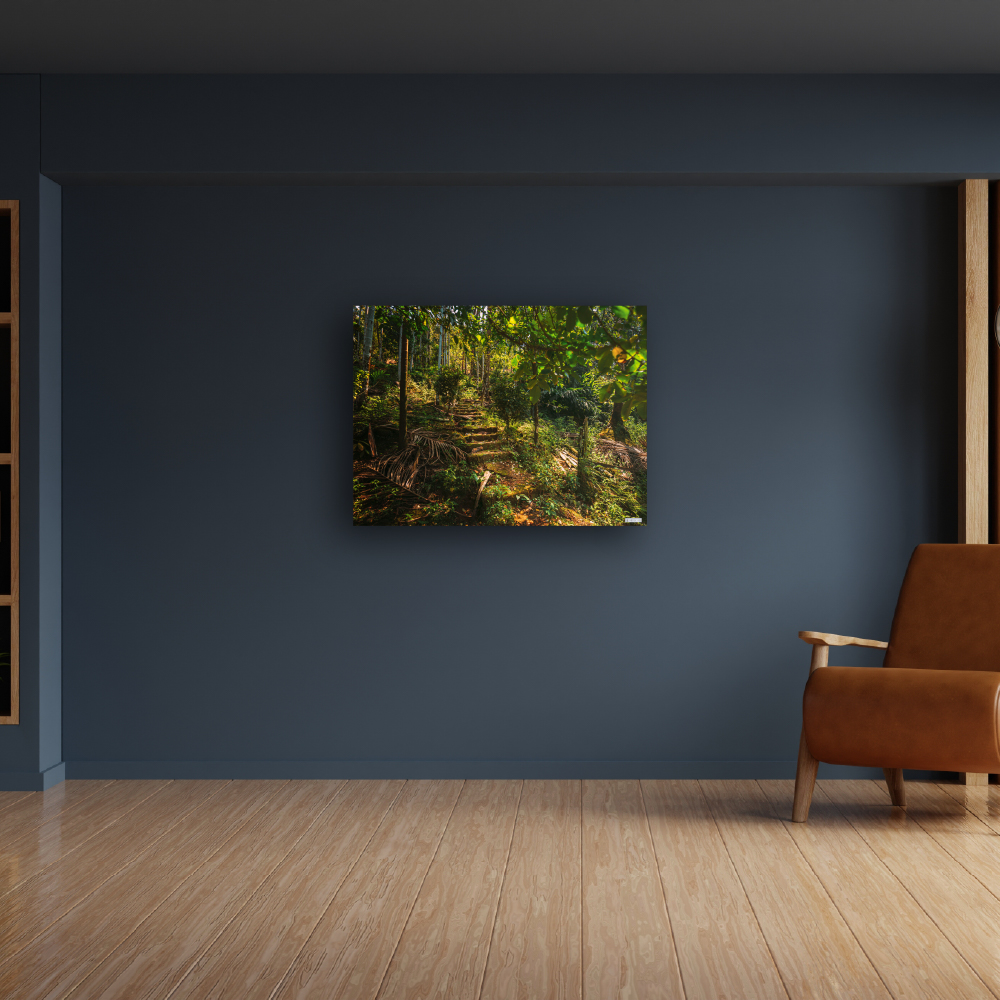

BH-500

550W

60 x 80cm

7 - 12

£909.00

BUY

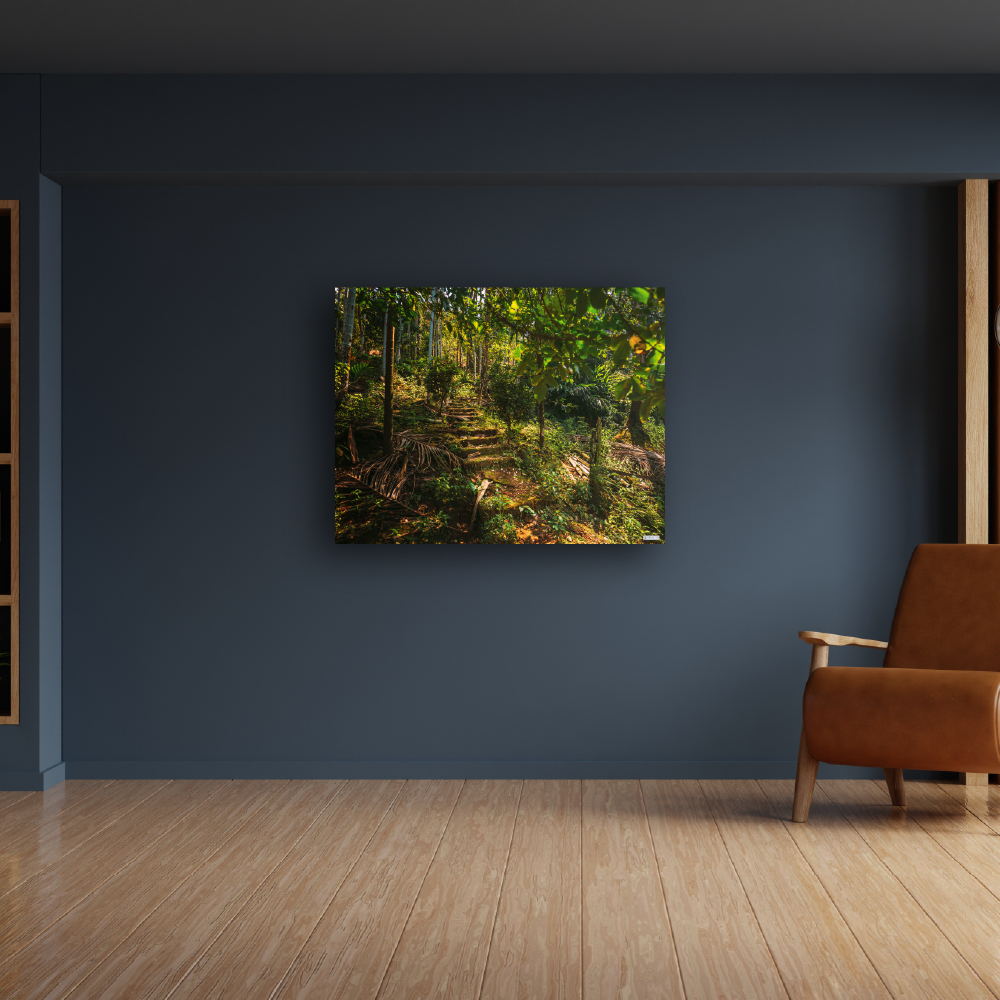

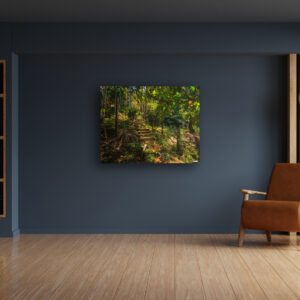

BH-750

750W

70 x 90cm

11 - 18

£1,125.00

BUY

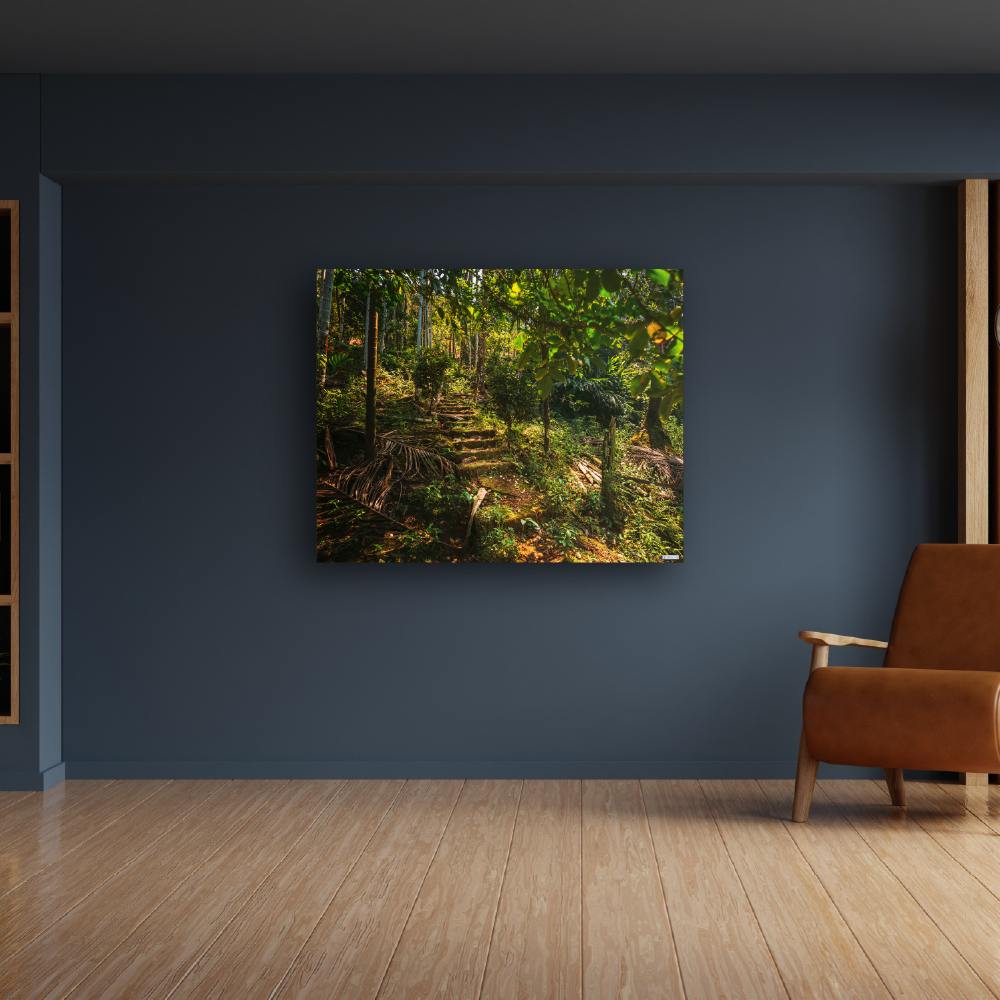

BH-900

900W

80 x 100cm

13 - 22

£1,245.00

BUY

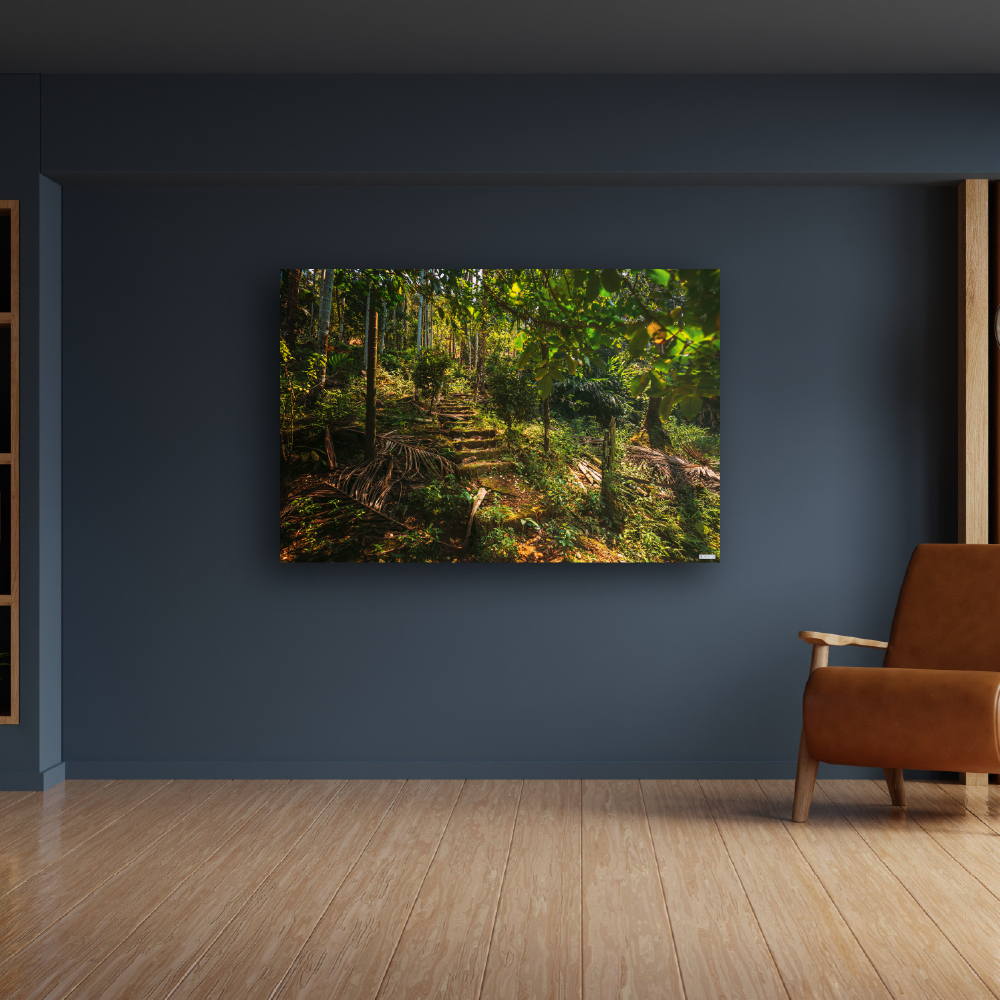

BH-1200

1200W

80 x 120cm

17 - 29

£1,439.00

BUY

Special Order

10 year warranty

Reduce heating Cost

Energy efficient

Easy Installation

Zero Maintenance

Find Out More

  • Description

    Description

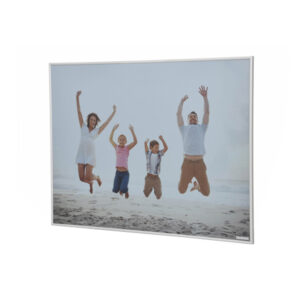

    Our Inspire infrared picture panel heater is made to order in Germany. Our factory utilises a highly specialised printer to produce high resolution images printed onto our glass panel.

    The Inspire infrared picture panel heater comes frameless as standard, but they can be fitted with a frame for a small extra charge.

    Customise your own panel with a family portrait or a favourite photo or even your child’s drawing or else choose from our own specially selected designs. Click on the link below to open our Data Sheet and see our selection of over 50 different designs. Also used by hotels to turn the room heating into art.

    Acceptable file types are TIF, JPG, PSD, PDF, EPS.  Minimum resolution must be 300 DPI and file size approx. 5 MB. (Note: this recommended size is for guidance only. The image quality must be suitable for size of panel and our Design Team will make sure the quality is acceptable and meets their strict quality criteria before printing). Please contact us for more details if you are looking to use your own imagery.

    Available in seven different sizes and power outputs from 250 – 1200 Watts to suit every requirement, Herschel Inspire infrared picture panel heaters operate at a fraction of the cost of traditional heating, but offer higher thermal comfort levels.

    All units are made with ESG Safety Glass and manufactured in Germany from the highest quality all German made materials. They are guaranteed for 10 years. Order lead time is up to 6 weeks.

    Inspire infrared picture panel heaters are designed for professional installation only and do not have any inbuilt receivers. They must be controlled with our Herschel IQ controllers and there are a number of options (sold separately) to choose between. The panels are directly wired either to our MD2 hard wired thermostat. MKS, MKW or to our R2 receiver. Full App control is available when used with all options. Select your thermostat options below.

    Please note that the gallery shows some picture panels that have been designed for customers, using their own imagery, as well as some of our specially selected designs.

    The heated areas are a guide only and assume a medium to well insulated space with an average floor to ceiling height of 2.40M.  If room heights are greater or there are other building factors to consider then please use our Calculate Your Requirements page, Contact Herschel, or contact your dealer directly so that a more detailed assessment can be carried out.

    Frames

    Frameless is standard. All other frames below carry a surcharge.

    Model Part No. Picture
    Silver matt AP-RA-7004 Silver matt frame
    Silver shiny AP-RA-7003 Silver shiny frame
    Brushed mercury AP-RA-7327 Brushed mercury frame
    Gold shiny AP-RA-7001 Gold shiny frame
    Black matt AP-RA-7021 Black matt frame
    Walnut structured AP-RA-7318 Walnut structured frame



  • Technical

    Technical Specifications

    Heater Type: Fixed electric low temperature infrared heater

    Surface: ESG Safety Glass with picture printed on rear (gloss finish).

    Rear Case: Sheet steel, powder coated, mounting points

    Surface Temperature: 95 - 105°C

    Cable Length: 1.8m

    Plug: No Plug

    Voltage: 230V 50Hz

    Protection Class: IP54

    Installation: Wall-mounted only

    Warm-up Time: 7 Minutes

    Useful Wavelength: 5 - 12µm

    Quality & Safety

    Certifications

    TÜV GS (TÜV SÜD Product Service GmbH)

    EU/ UK Electrical Safety: IEC60335-1; 60335-2-30; EN62233

    Electromagnetic Certification: EN55014-1&2; EN60001-3-2&3

    Restriction of Hazardous Substances (RoHS): IEC62321

    Ecodesign Compliance: ErP Regulation (EU) 2015/1188 and Supplement (EU) 2016/2282 (Lot 20) when using Herschel Controls

    Warranty: 10 Years

    Note: Made in Germany, typically 1 – 2 week delivery

  • Manuals and Guides
  • Controls / Accessories

    Control Options (Required)

    • Herschel iQ T-MKW Mains Powered WiFi Thermostat White

      £84.00
      BUY
    • MKS

      Herschel iQ T-MKS Mains Powered WiFi Thermostat Silver

      £89.00
      BUY
    • Herschel iQ MD1 Wired Thermostat Control

      Herschel iQ MD2 Wired Thermostat

      £69.00
      BUY
    • Herschel iQ T2 Single Zone control

      Herschel iQ T2 Wireless Thermostat Pack

      £69.00
      BUY
    • R2 Wireless receiver

      Herschel iQ R3 Thermostat

      £54.00
      BUY

    Optional Accessories

    • Herschel Touch Screen Control Centre

      Touch Screen Control Centre

      £199.00
      BUY
    • Four Scene Control - White

      Four Scene Control – White

      £59.00
      BUY
    • Four Scene Control - Brushed Silver

      Four Scene Control – Brushed Silver

      £59.00
      BUY
    • PIR Sensor

      PIR Sensor

      £35.00
      BUY
  • Reviews (6)

    6 reviews for Inspire Picture- Infrared Panel Heater

    1. Mr Shaw

      Here’s a pic of the picture panel in situ in our new garden room. It works brilliantly and has enabled us to use it every day during the winter. The clarity of the image is stunning. Looking forward to telling people that it’s actually the heat source for the room when we can socialise again!!

      • Customer Service

        We’re so pleased you are happy with your picture panel. The image does look stunning.

    2. Keri and Matt

      We have a photo of Boston, Matt actually took the photo, it’s a beautiful photograph and we were so impressed with the quality, it just looks like a normal canvas that you have made. It’s looks like a regular picture but for us its keeping us nice and toasty warm.

    3. Evelyn Curry

      I went for a Herschel picture panel as the concept to me was fantastic. I now have a beautiful image of my dog warming the living room. Thanks Herschel. Top notch!

    4. Ms A Moseley

      Thank you and please pass on my thanks to everyone that was involved with this heater. It was extremely well packaged and the delivery team were spot on. The picture itself looks stunning, even better than imagined. Although not needed as a heater yet, it appears to give off an enormous amount of heat for such a small wattage.Ms A Moseley

    5. Collen Baker, Cool-Tech

      I have had a Herschel 750W picture panel here in my office for the past year. The picture on my panel is one of my Pointer in a wheat field. As ‘Jake’ normally sits on his bed under the heater many of my visitors comment on the quality and finish of the mounted panel. Technically I find these infrared panels the best form of heating, no dust, no warm air, just clean radiant heat. Collen Baker, Cool-Tech

    6. Roger Sims, Nuneaton

      I researched and got quotes from every supplier I could find online but I really couldn’t tell them apart. What made me decide to go to Herschel was the time they spent with me on the phone and I was then able to see their heaters running alongside some other models – at that point there was no more competition.
