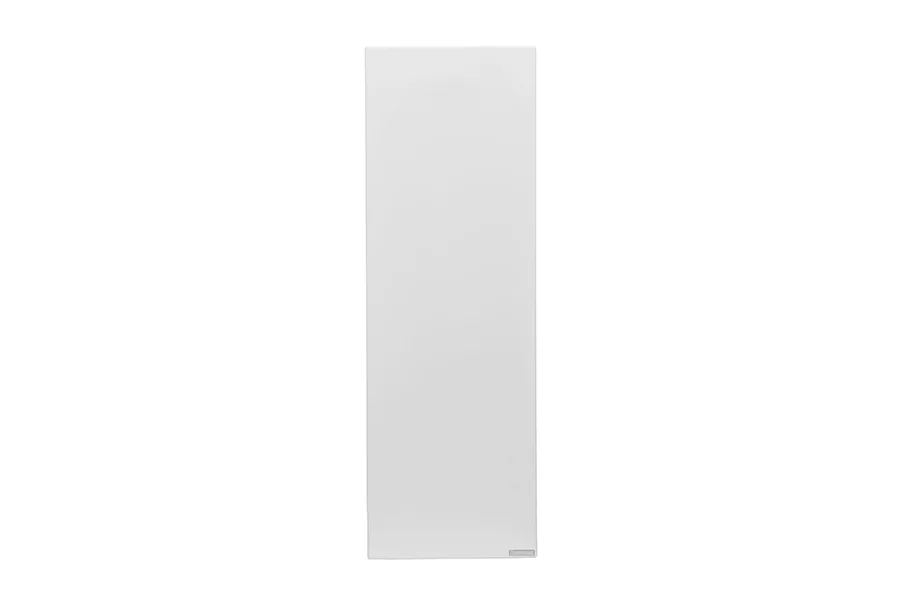

Inspire – White Frameless Infrared Panel Heater
What size panel do I need?use our
|Watts||Panel size cm||Heated area|
|250||60 x 30||3 - 5 m2|
|350||90 x 30||4 - 7 m2|
|420||60 x 60||5 - 8 m2|
|550||80 x 60||7 - 12 m2|
|750||90 x 70||11 - 18 m2|
|820||170 x 40 (for dwarf walls)||11 - 18 m2|
|900||100 x 80||13 - 22 m2|
|1200||120 x 80||17 - 29 m2|
|1250||160 x 60 (for dwarf walls)||17 - 29 m2|
Heated areas change considerably according to building age, window area and other factors.
Be sure to use our wattage estimator or ask us for help.
Our Inspire White infrared panel heater is made in Germany to exacting standards using the highest quality components available. This is a frameless panel made from powder coated aluminium emitting surface and incorporates our highly efficient long life heating element. All panels are designed and built to last a lifetime and each panel is quality inspected and fully tested as part of ISO9001 quality control procedures. Complete with a 10 year warranty and easy fit brackets, panels are optimised for UK voltage and designed to produce the optimum output of far infrared. Panels can be either ceiling or wall mounted. The “L” models 820w and 1250w panels are long and narrow and specially designed to fit on dwarf walls in conservatories.
Inspire is one of the longest running ranges in the market and cannot be beaten for quality. Customers who purchase Inspire choose this range because they want a tried and tested heating system which lasts a lifetime, is maintenance free and looks great in any setting. The range is tested by TUV Rheinland to GS electrical and product safety standards.
Inspire panels are designed for professional installation only and do not have any inbuilt receivers. They must be controlled with our Herschel IQ controllers and there are a number of options (sold separately) to choose between. The panels are directly wired either to our MD1 hard wired thermostat or to our R1 receiver. Full APP control is available with the purchase of our IQ hub. Select your thermostat options below.
Click here to download the Data Sheet.
Click here to download Installation & Operating Instructions.
The heated areas are a guide only and assume a medium to well insulated space with an average floor to ceiling height of 2.40M. If room heights are greater or there are other building factors to consider then please use our Calculate Your Requirements page, Contact Herschel, or contact your dealer directly so that a more detailed assessment can be carried out.
Field of application: Direct Heating
Surface: Aluminium, powder coated
Rear-panel: Sheet steel, powder coated, with mounting points
Surface temperature: 90 – 100°C
Cable: 3m power cable
Voltage: 230V 50hz
Protection Class: IP54
Installation: Wall or Ceiling mounted.
Quality & Safety
TÜV GS Certification (by TÜV Rheinland, Germany)
EMC Certification (by TÜV Rheinland, Germany)
ErP Regulation (EU) 2015/1188 and Supplement (EU) 2016/2282 (Lot 20).Valid from 1 January 2018 when used with Herschel iQ
Made in Germany, typically 1 – 2 week delivery
Guarantee: 120 months
Control Options (Required)
Herschel iQ MD1 Wired Thermostat
Herschel iQ T1 Wireless Thermostat Pack
Herschel iQ Hub
Herschel iQ WH1 Central Control Unit
Select XLS & Inspire Feet
