Inspire – Infrared Picture Panel
What size panel do I need?use our
|Watts||Panel size cm||Heated area|
|250||60 x 30||3 - 5 m2|
|350||90 x 30||4 - 7 m2|
|420||60 x 60||5 - 8 m2|
|550||80 x 60||7 - 12 m2|
|750||90 x 70||11 - 18 m2|
|900||100 x 80||13 - 22 m2|
|1200||120 x 80||17 - 29 m2|
Heated areas change considerably according to building age, window area and other factors.
Be sure to use our wattage estimator or ask us for help.

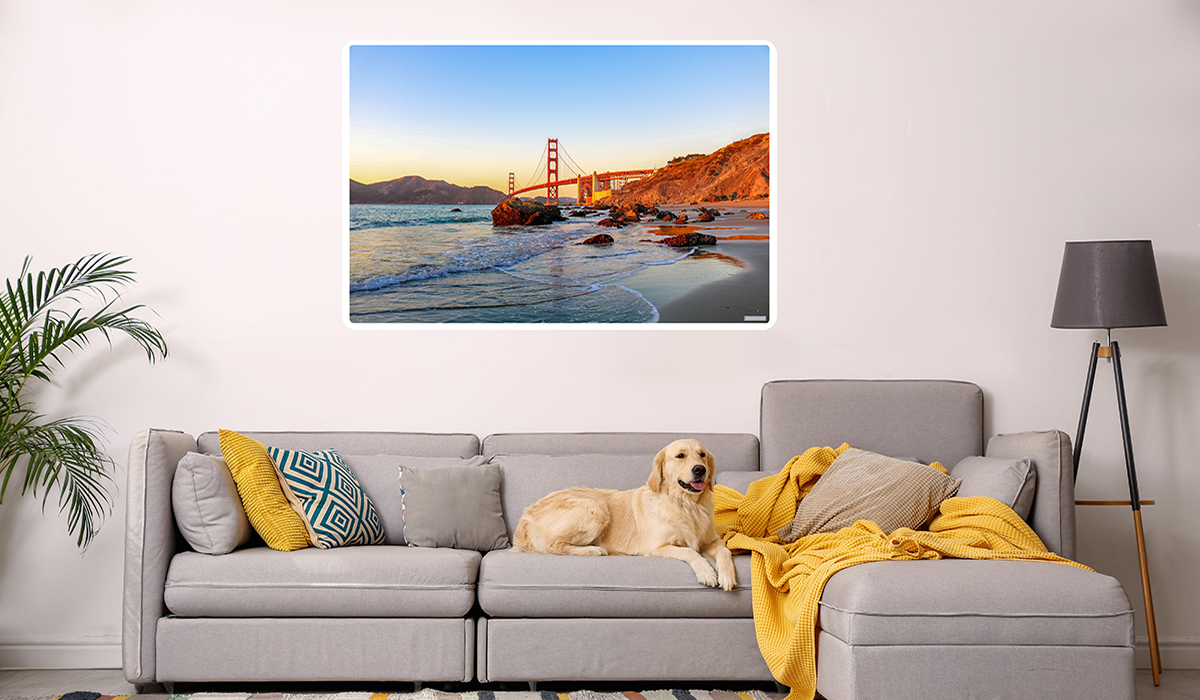

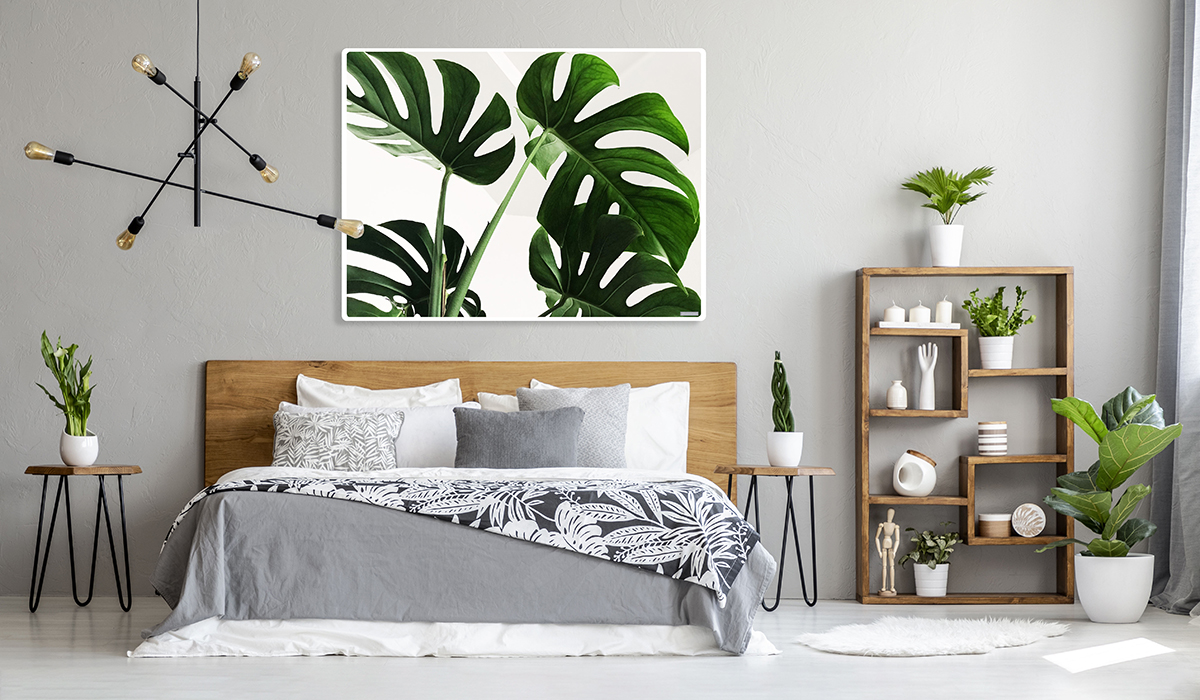

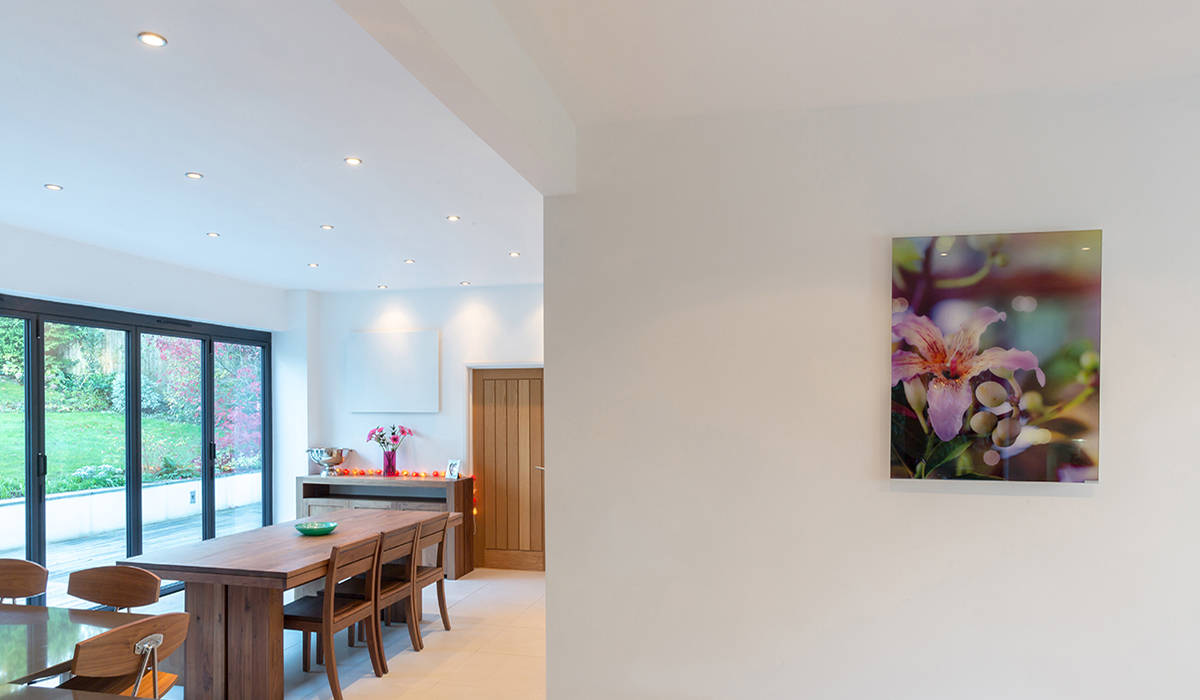

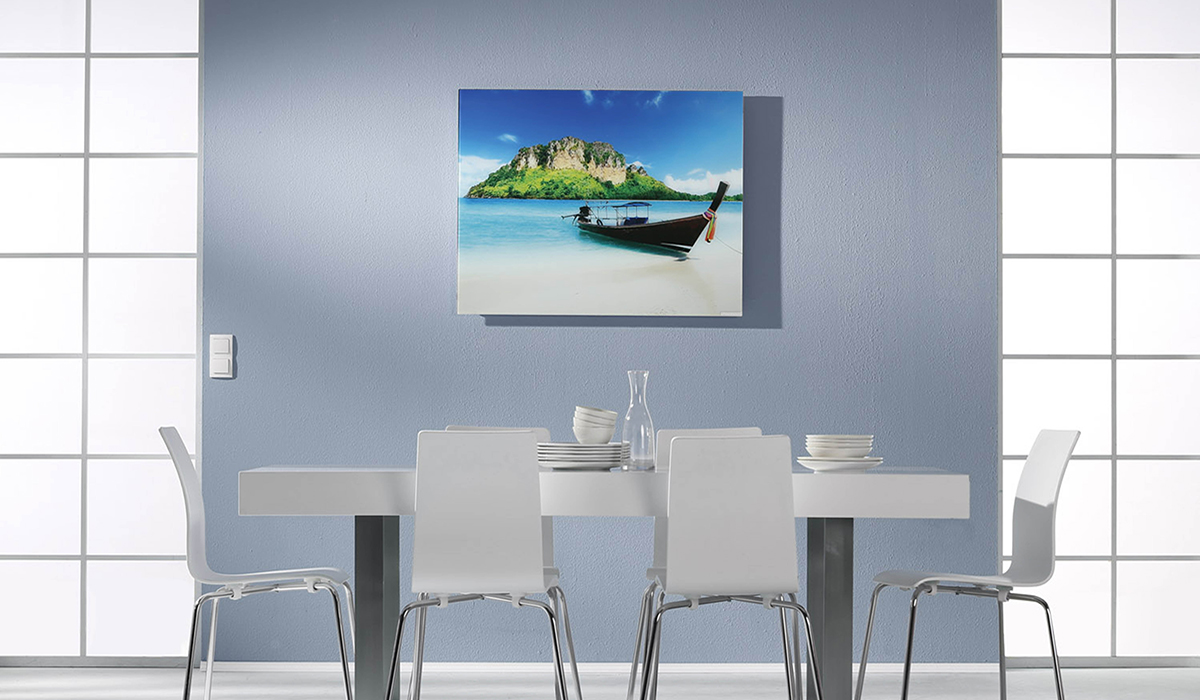

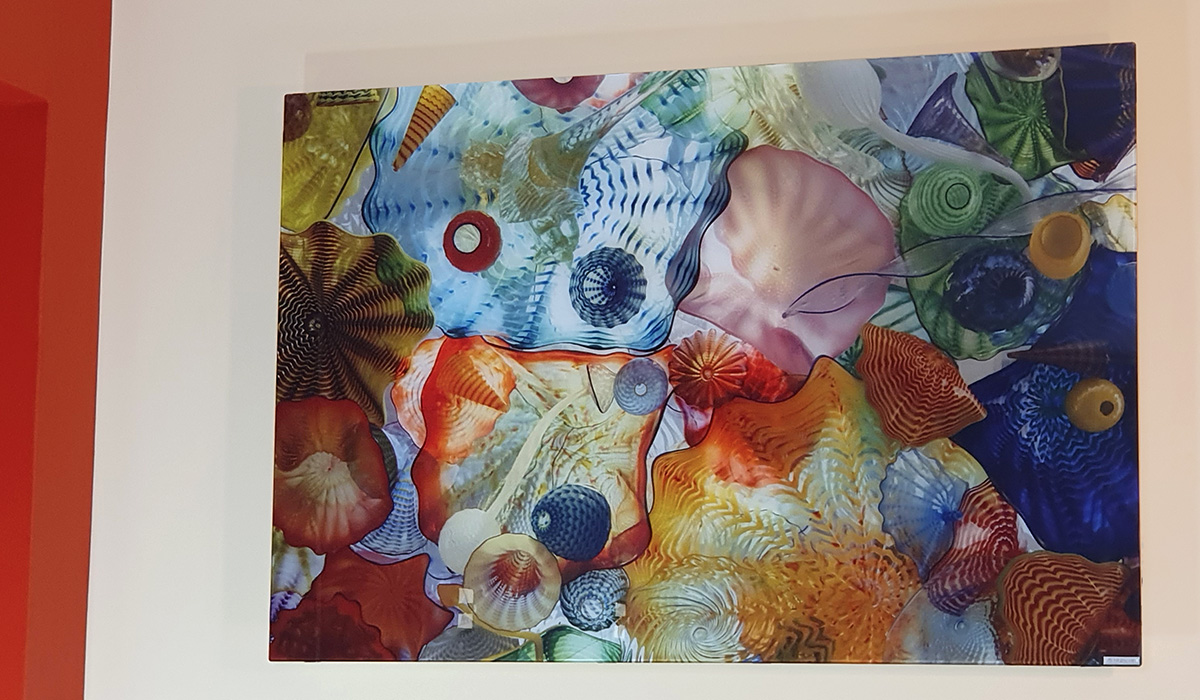

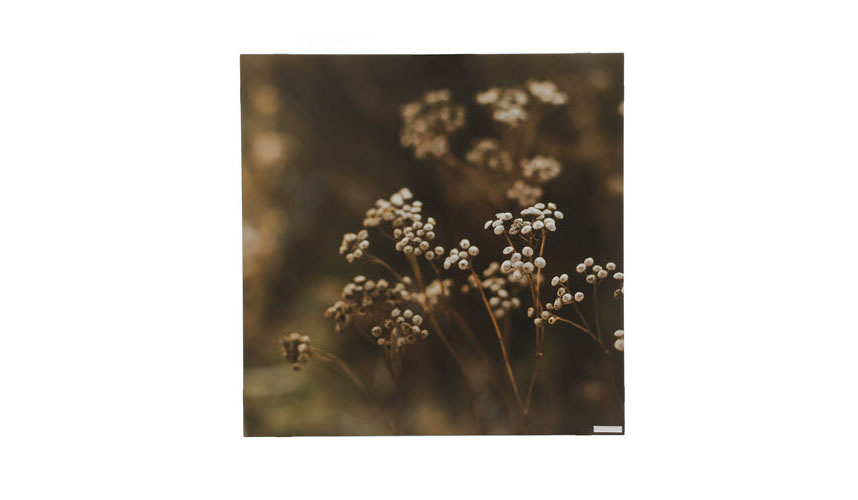

Our Inspire picture panels are made to order in Germany. Our factory utilises a specialised printer to produce high resolution images printed onto our glass panel. We can produce a matt finish by printing onto the front surface of the glass panel or a gloss finish by printing behind the glass. Please indicate your preference when ordering.
Picture panels come frameless as standard, but they can be fitted with a frame for a small extra charge.

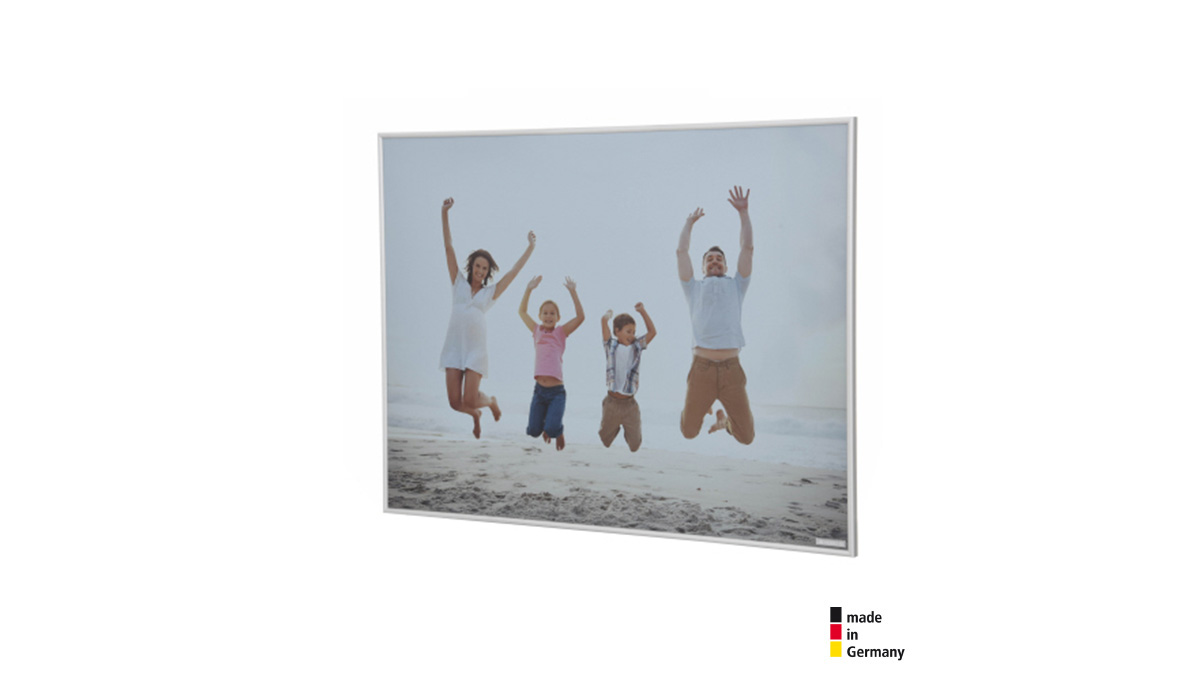

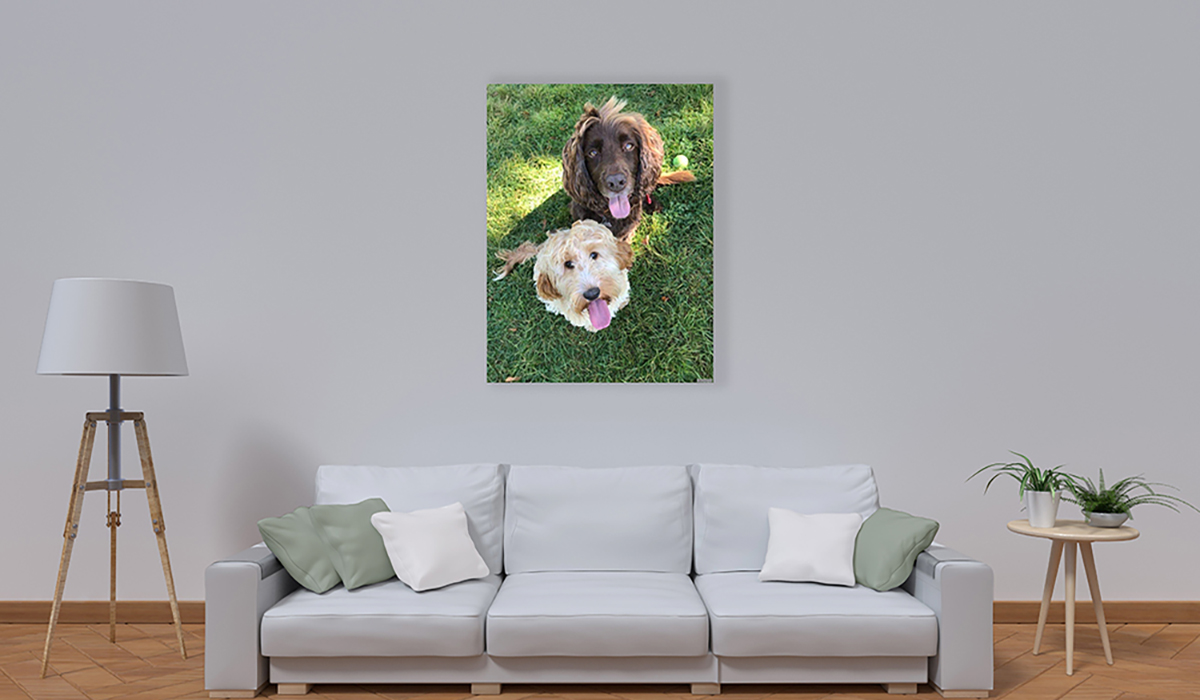

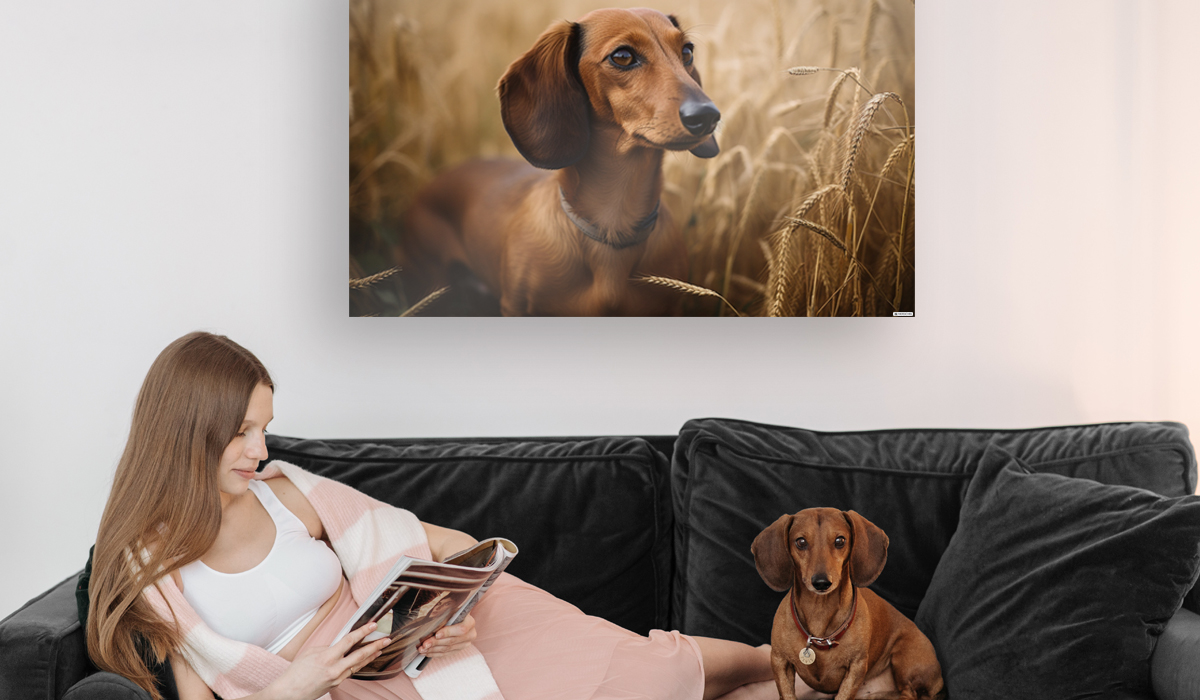

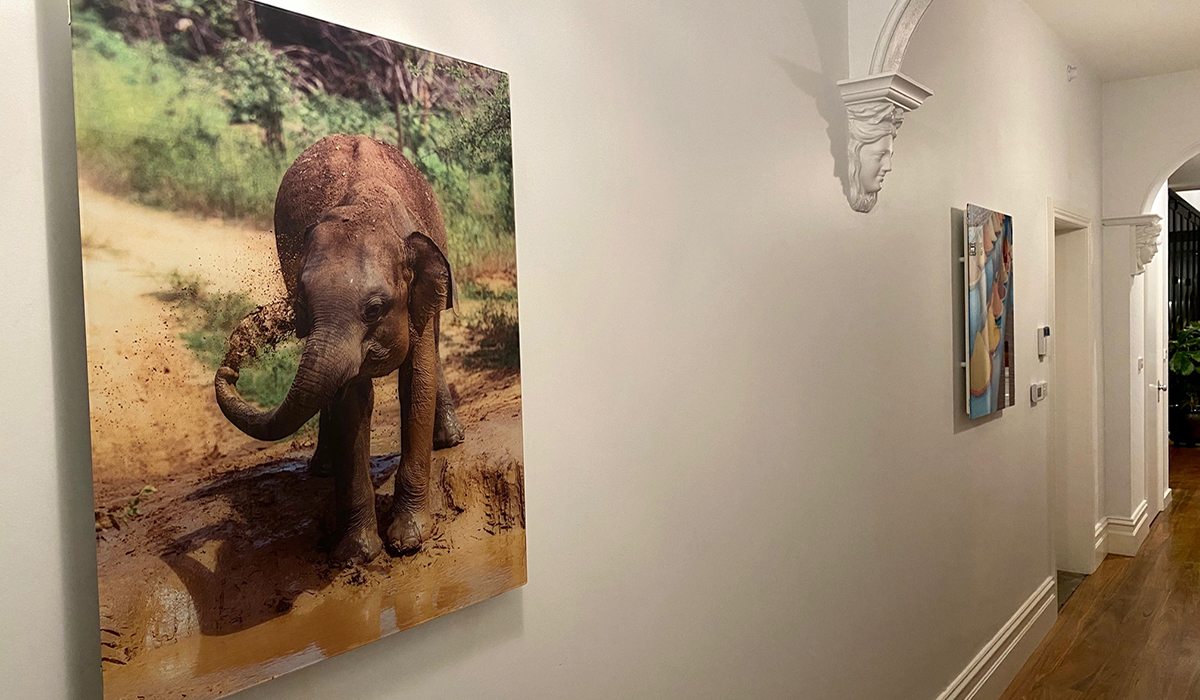

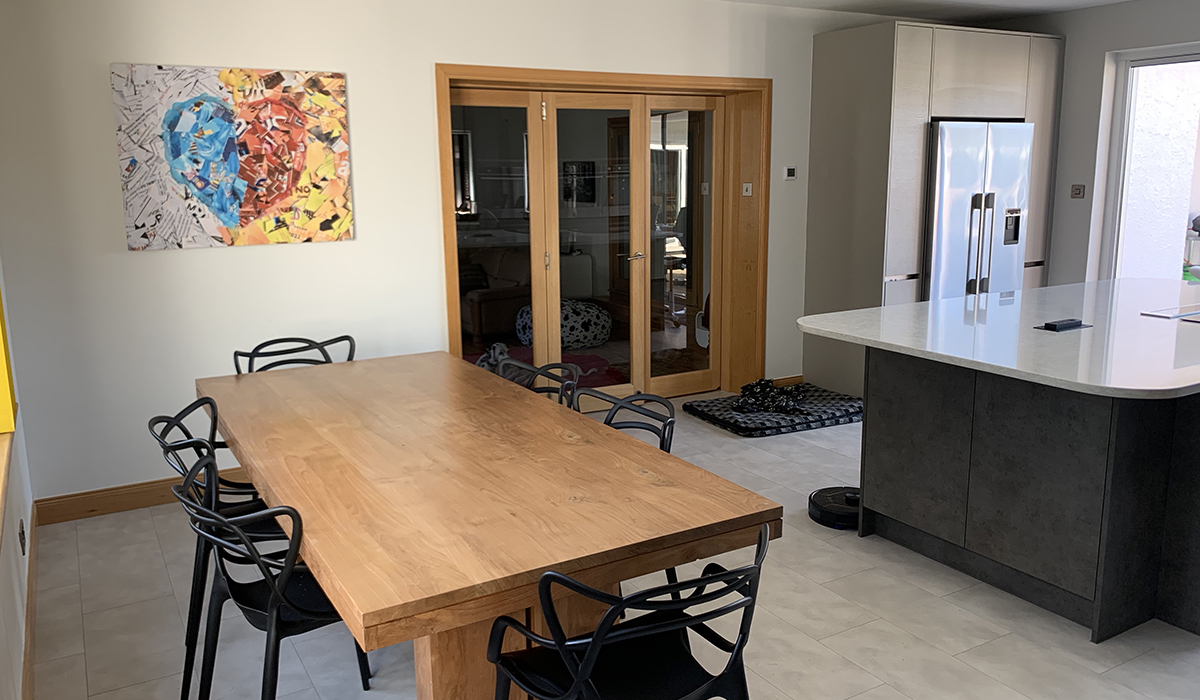

Customise your own panel with a family portrait or a favourite photo or even your child’s drawing or else choose from our own specially selected designs. Click on the link below to open our Data Sheet and see our selection of over 50 different designs. Companies often like to have heaters printed with their logos and Mission and Vision statements.
Available in seven different sizes and power outputs from 250 – 1200 Watts to suit every requirement, Herschel Inspire heaters operate at a fraction of the cost of traditional heating, but offer higher thermal comfort levels.
All units are made with ESG Safety Glass and manufactured in Germany from the highest quality materials and are guaranteed for 10 years.
Inspire panels are designed for professional installation only and do not have any inbuilt receivers. They must be controlled with our Herschel IQ controllers and there are a number of options (sold separately) to choose between. The panels are directly wired either to our MD1 hard wired thermostat or to our R1 receiver. Full APP control is available with the purchase of our IQ hub. Select your thermostat options below.
Click here to download the Data Sheet.
Click here to download Installation & Operating Instructions.
The heated areas are a guide only and assume a medium to well insulated space with an average floor to ceiling height of 2.40M. If room heights are greater or there are other building factors to consider then please use our Calculate Your Requirements page, Contact Herschel, or contact your dealer directly so that a more detailed assessment can be carried out.
Frameless is standard. All other frames below carry a surcharge.
Field of application: Direct Heating
Surface: Glass with picture printed on front (matt finish) or rear (gloss finish). “No frame” is default.
Colour: Printed, standard or custom motifs
Rear-panel: Sheet steel, powder coated, with mounting points
Surface temperature: 85-95°C
Cable: 3m power cable
Voltage: 230V 50hz
Protection Class: IP54
Installation: Wall mounted.
Quality & Safety
TÜV GS Certification (by TÜV Rheinland, Germany)
EMC Certification (by TÜV Rheinland, Germany)
ErP Regulation (EU) 2015/1188 and Supplement (EU) 2016/2282 (Lot 20).Valid from 1 January 2018 when used with Herschel iQ
Made in Germany
Guarantee: 120 months
Control Options (Required)
Herschel iQ MD1 Wired Thermostat
Herschel iQ T1 Wireless Thermostat Pack
Herschel iQ Hub
Herschel iQ WH1 Central Control Unit
