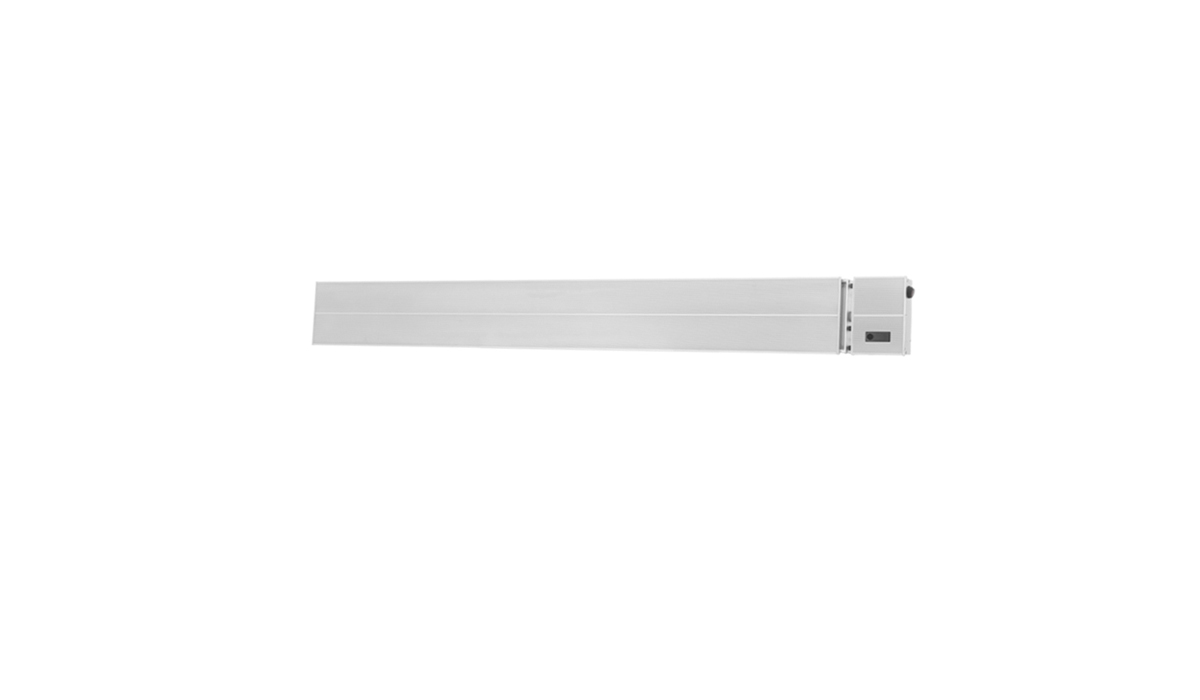

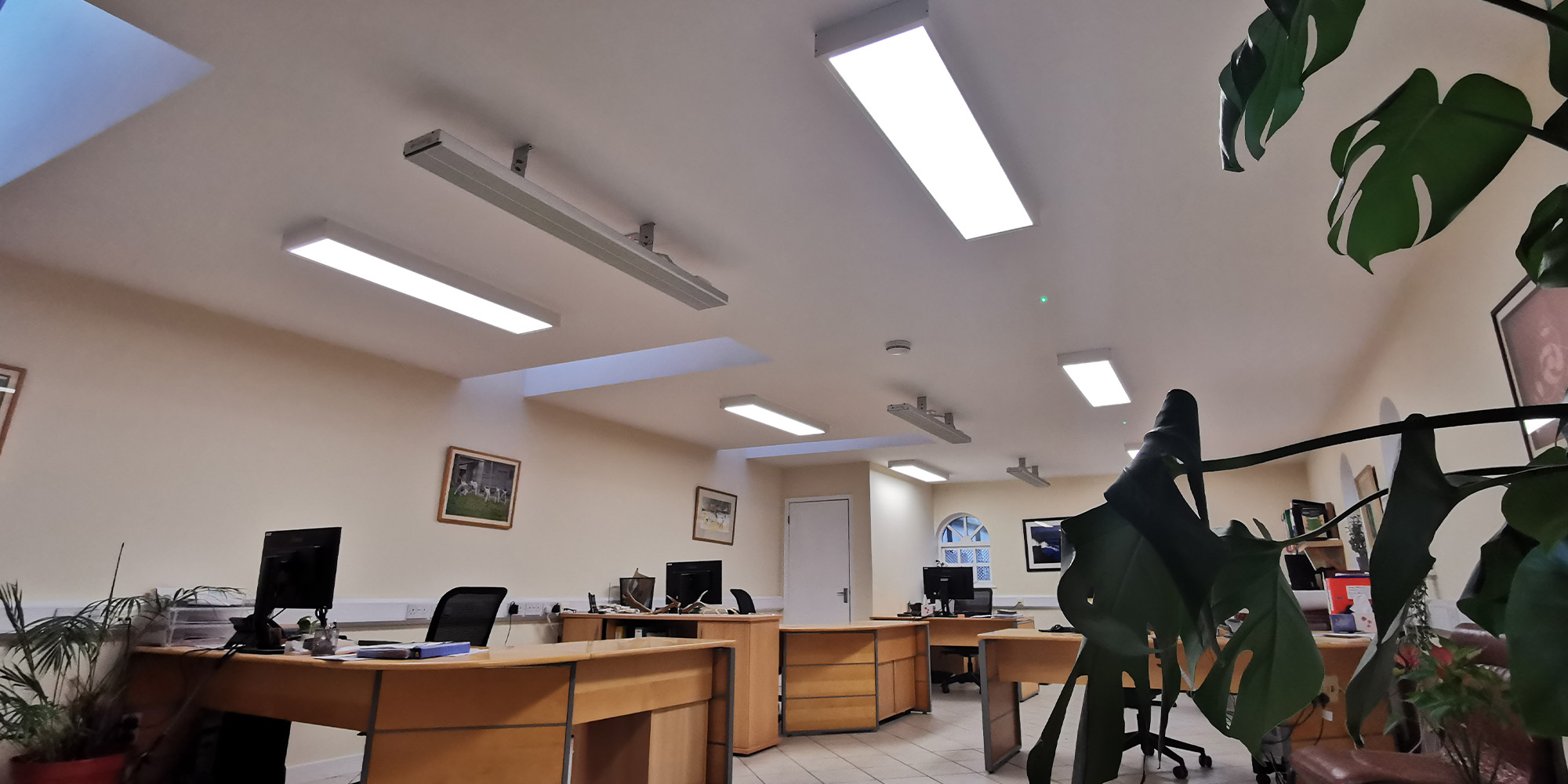

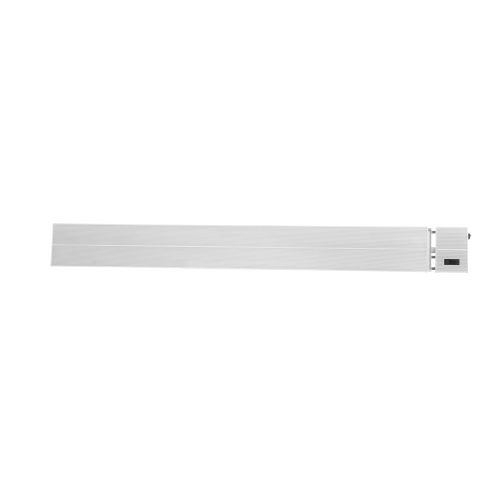

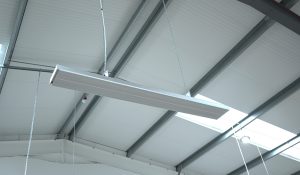

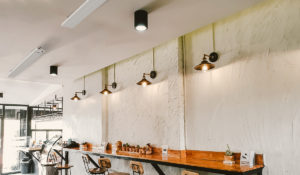

Summit White 2600W

The 3kW variable power controller is a compact controller for varying the power output of an infrared space heater.

The control enables operators to manually switch on / off and raise or lower the temperature of their space heaters where thermostats  or remote controls cannot easily be used (for example workshops or point of sales booths).

The unit is simple to install and connect.

Not suitable for heaters with built-in remote control units.

The 6kW Soft Start controller is designed to reduce the impact on heaters and electrical circuits of high startup currents that occur when full power to the heaters is switched on instantly.

High inductive loads or “Inrush currents” caused by switching on high power equipment  instantly can cause damage to the heaters and can also cause nuisance tripping of circuit breakers. Using a soft start controller will eliminate nuisance tripping and will also prolong the life of the heater, due to the gentler start up time.

The controller works by gradually applying full power over 5 seconds after current is first detected by the controller.

The unit can work passively by waiting until current is detected and soft-starting the heater. This makes it ideal as part of a large installation of heaters where a central control such as a thermostat switches a number of heaters on and off and the soft start just responds when it detects the current.  Alternatively a simple switch can be connected to the unit to activate the current directly to the unit which makes it ideal for smaller or domestic installations where the heater can be switched on directly via the soft start control.  This gives operators a lot of flexibility in how they want to design and control their heating system.

With its award-winning designer finish and smart, flexible control via the SmartLife App, the Herschel iQ MKS Mains powered WiFi Thermostat provides the ideal choice for control of your infrared heating system. Perfect for new builds and renovations where cabling can be neatly hidden whether it be for domestic or commercial applications and can control temperatures of up to 45°C. When used in conjunction with your WiFi network and the SmartLife App, MKS can run in fully programmable ‘Smart Mode’ enabling you to manage your heating as efficiently as possible whether you are home or away.

MKS is wired directly to the mains circuit and to the heaters and requires recessing into the wall or can be surface-mounted to the wall with a back box.

The MKS thermostat will operate your Herschel heater(s) by turning them on if the room temperature is lower than the desired temperature and turning them off once the desired temperature is reached. The MKS is easy to operate via the SmartLife App or via push buttons and incorporates the latest EcoDesign energy-saving features including Herschel’s open window technology.

MKS has a keypad locking feature to prevent unauthorised tampering making it suitable for commercial applications such as hotels, care homes, student accommodation and let properties.  The MKS is a 16 Amp thermostat enabling up to 3.6 kW of Herschel heaters to be connected. They can be used with the Inspire, Select XLS or Herschel space heating range.

If using the MKS with the Select XLS panel range the SMART-R function of the XLS panel will be bypassed. The thermostat will have to be hard-wired directly to the heater as well as the mains. (It is not possible to pair wirelessly with the panel).

Note: Herschel iQ controls will only work with Herschel heaters.   *Attempted use with any other heater brand will invalidate the warranty.

The Herschel iQ MD2 Wired Thermostat is ideal for new builds / renovations where cabling can be neatly hidden whether it be for domestic or commercial applications. When used in conjunction with your wifi network and the SmartLife app, MD2 can also be controlled remotely via the internet, enabling you to manage your heating when you are away from the building.

MD2 is wired directly to the mains circuit and to the heaters and requires recessing into the wall.

The MD2 thermostat will operate your Herschel heater(s) by turning them on if the room temperature is lower than the desired temperature and turning them off once the desired temperature is reached. The MD2 is easy to operate, featuring a large digital touchscreen display and incorporates the latest EcoDesign energy-saving features including Herschel’s open window technology.

MD2 has a keypad locking feature to prevent unauthorised tampering making it suitable for commercial applications such as hotels, care homes, student accommodation and let properties.  The MD2 is a 16 amp thermostat enabling up to 3.6 kW of Herschel heaters to be connected.

Note: Herschel iQ controls will only work with Herschel heaters. The MD2 thermostat is not compatible with Remote models.

*Attempted use with any other heater brand will invalidate the warranty.
